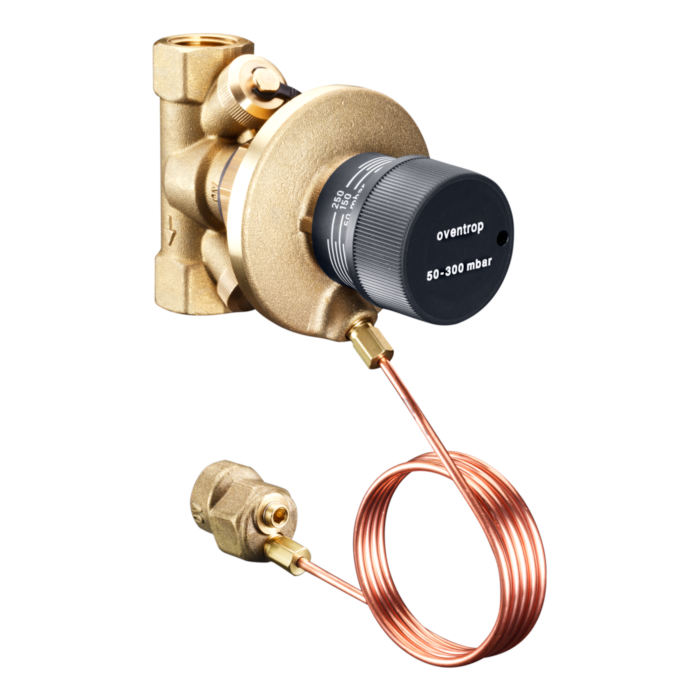

Oventrop differential pressure control valve Hycocon DTZ

"Hycocon DTZ" DN32, 2000 2000 / 4 "IG, PN16, 50-300mbar, Ms OVENTROP-" Hycocon DTZ "differential pressure controller PN 16 For constant control of the setpoint as a proportional controller without auxiliary energy. Infinitely adjustable setpoint from 50 to 300 mbar. Setpoint can be blocked and read from the outside at any time. With direct shut-off and the possibility of emptying and filling, installation in the return, grade seat design, valve cone with soft seal. Valve housing, head piece and regulator bowl made of brass. Inner parts made of brass (ECB O-rings and membrane made of EPDM.max.operating temperature: 120 C 2000 pressure: 16 bar 2000 : 2000 , 5 bar Both ends of the socket thread according to DIN 2999 Manufacturers : FW OVENTROP GmbH & Co. KG, Olsberg

Technical Data

Technical Data
height 140 mm
product class regulator
service Medium controlled
Article compression stage PN 16
Flange pressure rating PN 16
model DTZ
Nominal diameter DN 32
series Hycocon
Housing material Brass
Max. Medium temperature (continuous operation) 120 ° C
Min. Medium temperature (continuous operation) -10 ° C
With drain valve Yes
Material quality Brass, dezincification resistant (DZR)
Lockable Yes
