Scope of delivery:

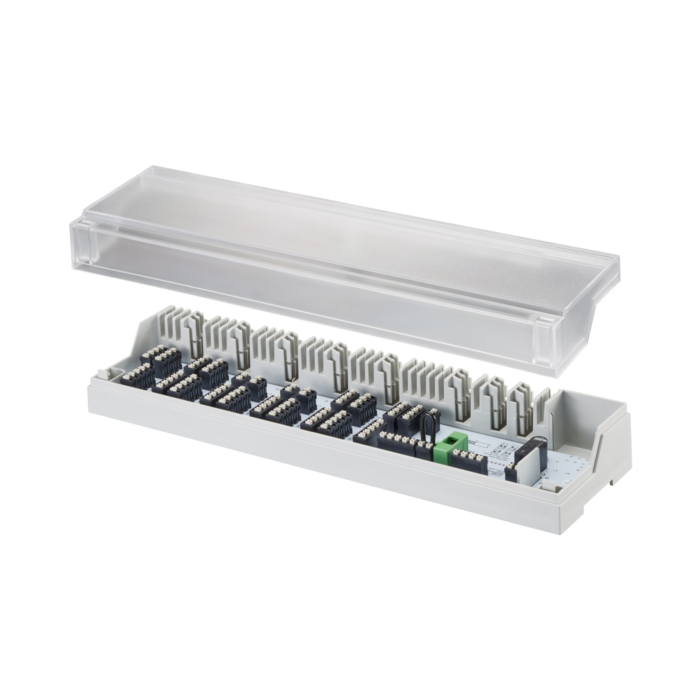

  • 1 x Oventrop electrical connection strip 1400981 for surface heating 10 control zones 230 V

Description:

  • for room thermostats and actuators 230V
  • Heating and cooling (change-over)
  • with pump control / pump logic
  • Setting up an individual room control system with up to 10 zones
  • Connection of up to 18 actuators
  • Operating voltage: 230 V +- 10% at 50 Hz
  • Power consumption 230 V: max 50 VA
  • Fuse 230 V: T4AH
  • Number of heating zones: 10
  • Direction of action: NC
  • Ambient temperature: 0 to +50 °C
  • Storage temperature: -20 to +70 °C
  • Ambient humidity: 80% non-condensing
  • ERP class according to EU 811/2013: 1=1%
  • Protection class 230 V: II
  • Protection class: IP 20
  • Length: 326.5mm
  • Depth: 50mm
  • Height: 90mm
  • Weight: 0.57kg
  • Manufacturer: Oventrop
  • Manufacturer item no.: 1400981
