Mepa nextVIT WC element 514814 Shower toilet , system height 120 cm
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 500
Part Number: 514814
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details

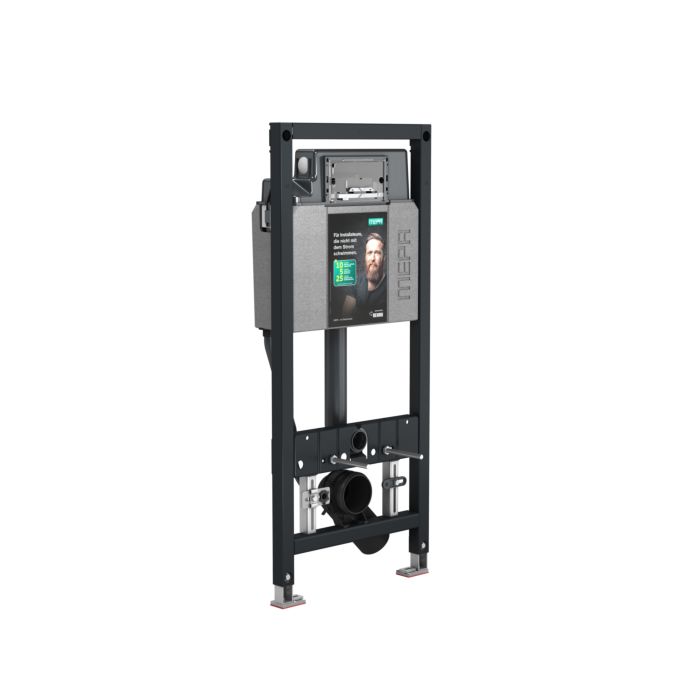

Mepa nextVIT toilet element 514814
- Pre-assembled mounting element for wall-hung toilet
- for drywall installation
- for individual installation in front of a solid or lightweight stud wall
- for rail mounting in front of a solid or lightweight stud wall
- for installing a water and electrical connection for connecting a shower toilet from the manufacturer Geberit
- Duravit or Toto
- self-supporting mounting frame
- suitable for cladding with gypsum fiber or gypsum plasterboard
- powder-coated profile frame
- Height-adjustable footrests 0-240 mm with integrated slip resistance
- Rotatable footplates
- Compensating for drilling errors
- Depth suitable for installation in UW profile UW 50 and UW 75 and MEPA-C profile
- Center and meter markings for exact alignment of the axis center and installation height of the element
- Concealed cistern Sanicontrol type A31
- 2-volume or 1-volume or start/stop flushing technology
- Cistern completely pre-assembled
- Testing and CE marking in accordance with DIN EN 14 055
- Water connection on the left or rear
- Flush volume 6/3 l (factory setting)
- Flush volumes can be adjusted separately (large flush volume 5-7 l continuously
- small flush volume 3-4.5 l continuously)
- max. flushing volume 7.5 l
- With factory settings, immediate rinsing is possible
- Integrated flushing flow throttle for continuous reduction of the flushing flow from approx. 2.2 l/s (min. throttling) to 1.8 l/s (max. throttling)
- insulated from sweat water
- mechanical operation from the front
- Toilet connection elbow 3-way depth adjustable
- with empty pipe for water supply for connecting shower toilets
- Made by Geberit or Duravit
- with connection for NYM cable 3x 1.5 mm²
- Scope of delivery: Wall bracket set for individual installation in front of solid walls
- Mounting set for mounting in a lightweight construction wall
- Water connection G 1/2 A with integrated angle valve and handwheel
- PE wall toilet connection elbow DN 90
- PE wall-mounted toilet connection set DN 90
- PE transition piece DN 90/110
- Wall toilet mounting set M12
- Building protection box for inspection opening
- 2 protective plugs
- Empty pipe for shower toilet water connection
- PG screw connection for electrical connection
