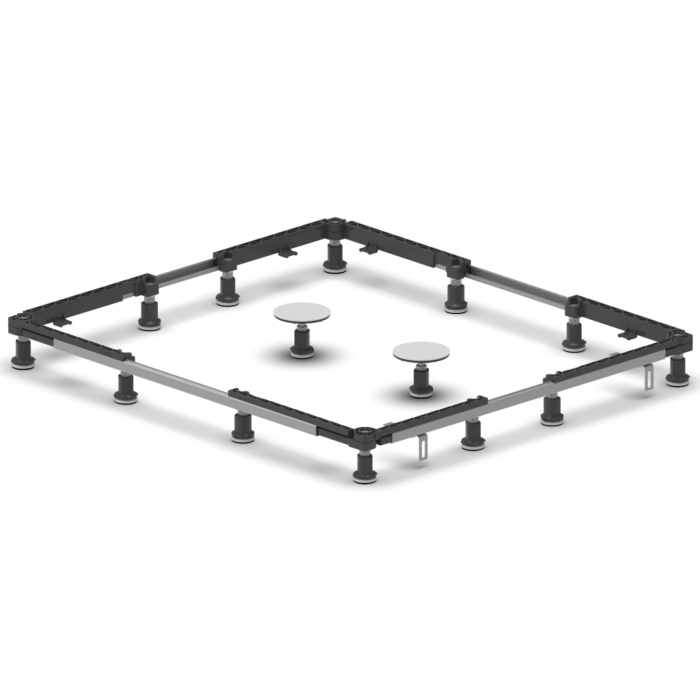

mabo Sanitec mounting frame EVO1200 101391 for shower trays from 700 x 700 mm to 1250 x 1250 mm

mabo Sanitec mounting frame 101391

• for steel, cast mineral and acrylic shower trays
• Height adjustment range 68-130 mm
• 12 adjustable feet mounted
• 2 UniFlex
• all adjustable feet with swivel and pendulum bearings as well as structure-borne noise decoupling
• the tub is placed on the mounting frame
• the UniFlex feet are screwed to acrylic tubs (screws are included)
• glued to steel or cast mineral tubs
• can be extended to 2000 mm with the extension set 101392 (set can be found under accessories)!

Material: steel / acrylic / mineral casting
Sizes: up to 1,250 x 1,250 mm
Height adjustable: 68 - 130 mm
(+ tub rim height)
Leveling feet: - 12 leveling feet completely pre-assembled
- 2x UniFlex feet to support the middle of the tub
- 2x Levelino
- All adjustable feet with pivot and pendulum bearings as well as structure-borne noise decoupling.
Attachment to tray: - Depending on the installation, the tray is on or in the EVO 1200
