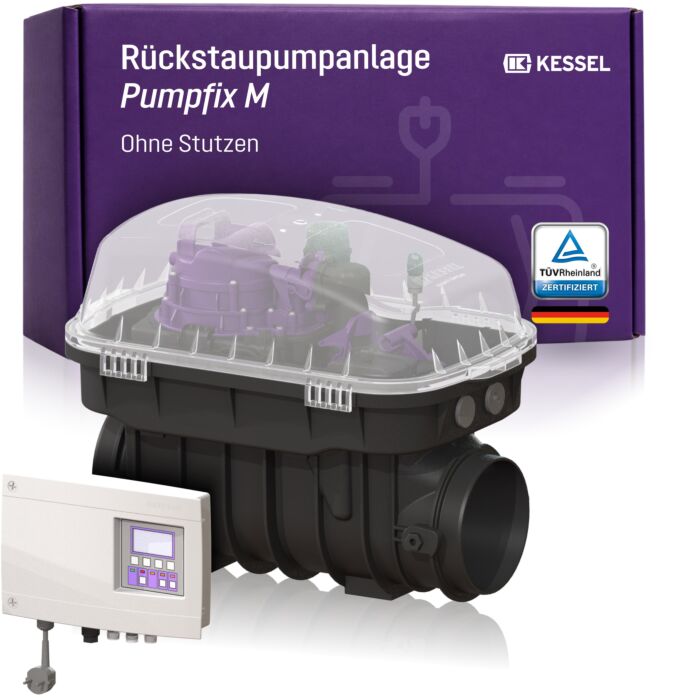

KESSEL backflow pumping system Pumpfix M
The KESSEL Pumpfix M is a premium backflow preventer for reliable protection against sewer backflow. Under normal operating conditions, it uses the natural gradient for drainage. Only in the event of backflow does the motorized system close the pipe, and the integrated pump takes over the safe drainage process.
Technical data
- Article number: 24000
- Wastewater type: containing fecal matter
- Installation situation: exposed wastewater pipe
- Pump: SPZ 1000
- Number of pumps: 1
- Flow rate: up to 11.5 m³/h
- Delivery head: up to 10 m
- Operating voltage: 230 V
- Power P1: 1.2 kW
- Power P2: 0.69 kW
- Pump protection rating: IP68
- Control unit: Comfort switching device
- Level detection: optical probe
- Dimensions (L × W × H): 542 × 350 × 422 mm
- Weight: 20.5 kg
Product information
- Hybrid backflow protection with free pipe cross-section in normal operation
- Automatic drainage during backflow phase via powerful SPZ 1000 pump
- Suitable for wastewater containing fecal matter and wastewater free of fecal matter.
- Motorized backflow preventer with additional emergency closure
- Comfort switching device with USB interface and logbook function
- Quieter and more energy-efficient operation thanks to pump activation only during backflow.
The KESSEL Pumpfix M combines the advantages of a classic backflow preventer with those of a lifting station. In everyday operation, the pipe cross-section remains fully open, allowing wastewater to drain away energy-efficiently via gravity. In the event of backflow from the sewer, the system automatically detects the situation, closes the motorized backflow valve, and continues to drain reliably via the integrated macerator pump. The user-friendly Comfort control unit offers comprehensive diagnostic and monitoring functions and can optionally be integrated into building management systems. Ideal for protecting basements and drainage systems located below the backflow level.
