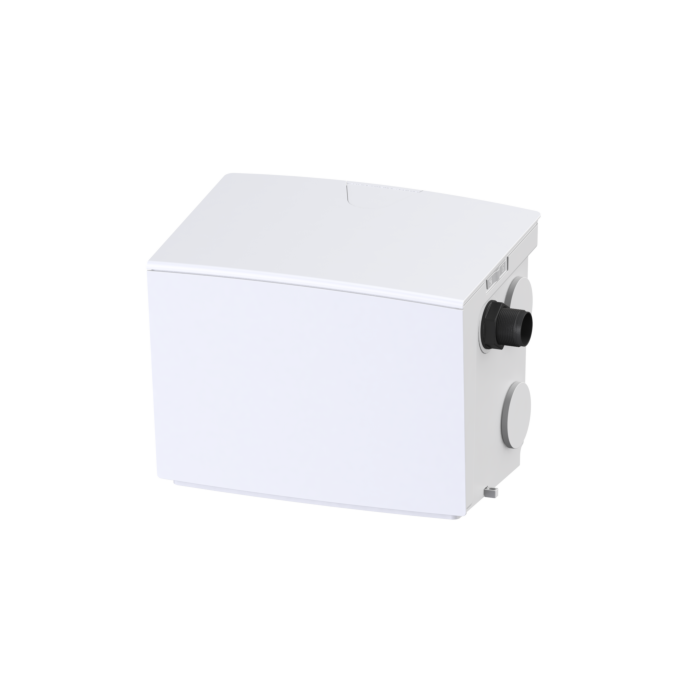

Kessel Minilift S small lifting system 28563
- The ready-to-plug Minilift S small lifting system is suitable for the wastewater disposal of domestic wastewater, ideal for connecting showers, bathtubs, washbasins, sinks, dishwashers or washing machines.
- The floodable pump with float switch can be easily removed using one-handed locks
- The plastic collection container has an open pump space and is resistant to aggressive wastewater
- The system offers flexible and easy options for on-site installation thanks to its numerous inlets (4x DN 50 horizontal, 1x DN 40 vertical) and adjustable outlets
- Hot water resistant
- Variable usable volume thanks to height-adjustable float
- Pressure-side non-return valve integrated at the factory
- Pump with free-flow impeller for maximum operational safety
- Tool-free maintenance
- Type of wastewater: fecal-free
- Installation situation: free installation
- System type: Single system
- Pump control: float switch
- Backflow preventer: integrated
- Pressure connection options: Thread 1 1/2", PVC adhesive connection, click adapter
- Ventilation: activated carbon filter
- Delivery condition: ready to plug in
- General features: Color: white
- Standard: EN 12050-2
- Dimensions: Length: 425 mm Width: 300 mm Height: 340 mm
- Inlet quantity: 5 pieces
- Inlet nominal diameter (DN): 40
- Container volume: 30 l
- Min. usable volume: 7 l
- Usable volume max.: 12 l
- Pressure outlet: horizontal
- Pressure outlet (DN): 32 mm
- Pressure outlet (DA): 40 mm
- Free ball passage: 10 mm
- Pump: GTF 1000
- Number of pumps: 1
- Maximum delivery rate: 14.5 m3/h
- Maximum delivery height: 10 m
- Operating voltage: 230V
- Mains frequency: 50 Hz
- Operating mode: S3 - 50%
- Power P1: 1.27 kW
- Power P2: 0.73 kW
- Speed: 2,800 rpm
- Required protection (line protection): C 16 A
- Conveyed material temperature (permanent) max.: 40 °C
- Short-term hot water resistance (2 minutes): 80 °C
- Connection type: Schuko 2-pole
- Weight: 10kg
- Impeller type: free-flow impeller
- Length of pump power connection cable: 5 m
- Rated current: 5.6A
- Protection class pump: IP 68 (3m)
- Protection class: I type
- Pump connection cable: H07RN-F 3G 1.0 mm2
- Temperature monitoring: integrated
- Type of level detection: mechanical
- Instrument level detection: float switch
