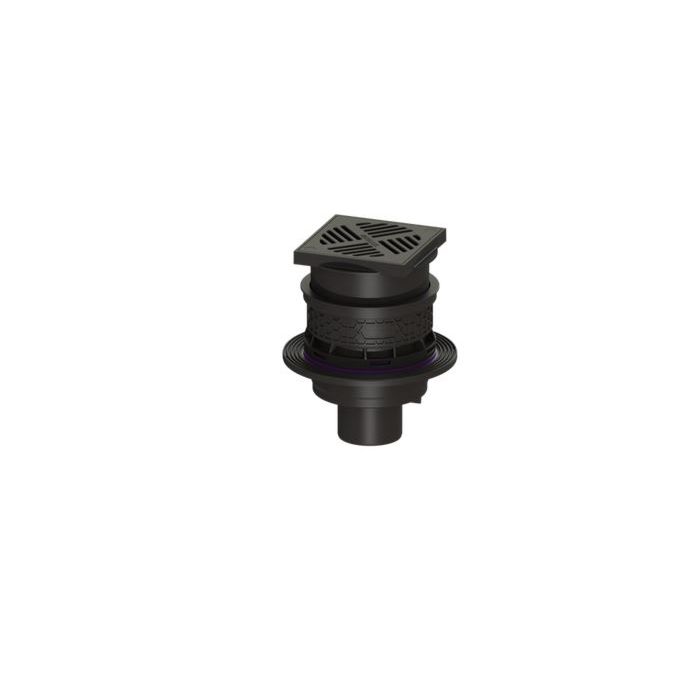

Kessel universal basement drain Plus 27631 plastic, with socket, vertical design, black cover

Kessel cellar drain Universal Plus 27631

• plastic
• with stockings
• vertical version
• Black plastic cover
• with a removable backflow preventer with two backflow flaps
• a manually lockable emergency closure and a mud bucket
• WU flange: factory pre-assembled
• Water seal height: 60 mm
• Installation situation: Installation in the base plate
• Wastewater type: fecal-free
• Backflow protection: Type 5 Mechanical backflow preventers
• General characteristics: Nominal diameter (DN): 100
• Color: black
• Standard: EN 1253, EN 13564
• Dimensions: Height: 270 mm
• Recess dimensions (length): 310 mm
• Recess width: 310 mm
• Diameter: 295 mm
• Installation depth (T) of: 293 mm
• Installation depth (T) up to: 350 mm
• Basic body: Nozzle
• Design: vertical
• Type of height adjustment: telescopic extension piece
• Adjustment range: 23 - 80 mm
• Cover material: black plastic
• Load class: K 3 (EN 1253-1)
• Length: 200 mm
• Width: 200 mm
• Height: 25 mm
• Mud bucket: yes
• Drainage capacity (l/s) with 10 mm backwater: 1.4 l/s
• Drainage capacity (l/s) with 20 mm backwater: 1.9 l/s
