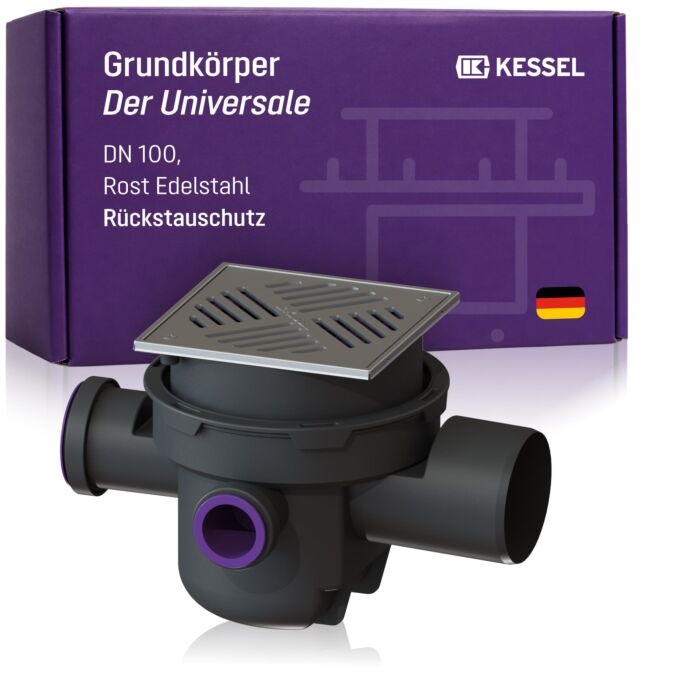

Boiler base body The Universal DN 100
- Boiler cellar drain DN 100 KE27621
- Universal grate
- 200x200 stainless steel
- Kessel basement drain "The Universal One" made of plastic (PP),
- with removable backflow preventer and hand-lockable emergency closure,
- Odor trap height 60 mm,
- with mud bucket
- Discharge rate 1.8 l/s,
- two DN 50 inlets and one DN 70 inlet
- with blind plugs.
- Plastic attachment with stainless steel grate frame
- telescopically height-adjustable from 20 mm to 65 mm,
- Stainless steel slotted grate, screwed together.
- Design: Basement drain with backflow preventer
- Standard: DIN EN 13564 Type 5
- Dimension: DN 100 (OD 110 mm)
- Outlet: 2.5 degrees (lateral)
- Inlets: with three inlets
- Attachment piece: Plastic
- Grate frame/slotted grate: Stainless steel
- Grate size: 200 x 200 mm
- Load class: K3 (300 kg)
