Kessel KE84125S Staufix FKA Komfort DN 125 faeces backflow machine
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 3500
Part Number: 84125S
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details

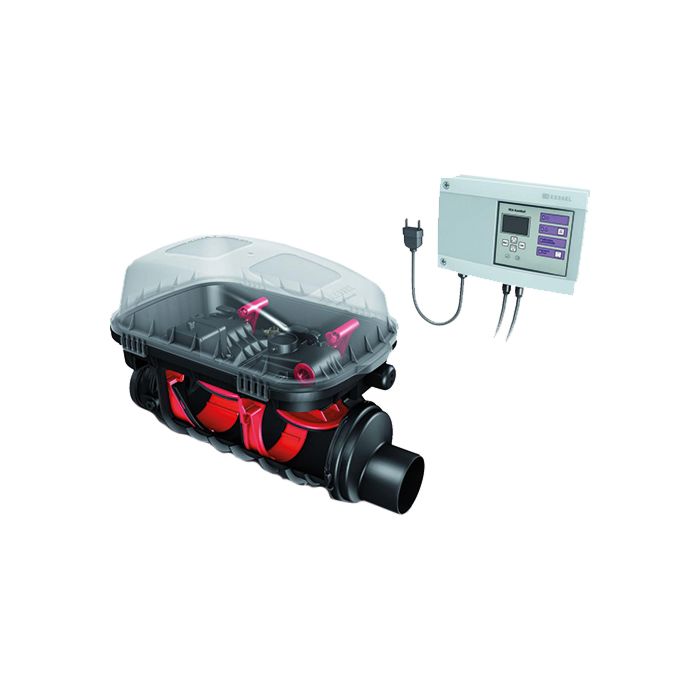

KESSEL faeces backflow machine
Item No .: KE84125S
Staufix FKA Komfort DN 125 KESSEL faeces backflow automat Staufix FKA Komfort for faecal and non-faecal wastewater, made of plastic, for installation in the base plate, with telescopic top section for stepless height and level compensation. With two open Klappen , the FKA flap (operational lock) is closed and locked fully automatically when there is a backflow, the second flap serves as a hand-lockable emergency lock and as a single backflow lock during the construction phase (3-stage flap). Ready-to-plug-in switching and warning device with display, self-diagnosis system (SDS) and battery backup, with logbook (diary function) for reading past operating states. Basic body with a minimum fall of 9 mm, inlet with push-in socket, outlet with spigot end for direct connection to plastic pipe systems (connection of other outside diameters and pipe materials with transitions from the system manufacturer). Automatic backflow: Staufix FKA comfort standard: DIN EN 13564 type 3 F installation body: black nominal size: DN 125 (DA 125 mm) installation type: installation in the base plate installation depth (T): 486 mm to 640 mm cover plate: black load class: A 15 ( 2000 , 5 t) Control line / cable length: 5 m Mains voltage / frequency: 230 V AC / 50 Hz Protection class: IP 54 (switching device) Protection class: IP 68 (motor)
Item No .: KE84125S
Staufix FKA Komfort DN 125 KESSEL faeces backflow automat Staufix FKA Komfort for faecal and non-faecal wastewater, made of plastic, for installation in the base plate, with telescopic top section for stepless height and level compensation. With two open Klappen , the FKA flap (operational lock) is closed and locked fully automatically when there is a backflow, the second flap serves as a hand-lockable emergency lock and as a single backflow lock during the construction phase (3-stage flap). Ready-to-plug-in switching and warning device with display, self-diagnosis system (SDS) and battery backup, with logbook (diary function) for reading past operating states. Basic body with a minimum fall of 9 mm, inlet with push-in socket, outlet with spigot end for direct connection to plastic pipe systems (connection of other outside diameters and pipe materials with transitions from the system manufacturer). Automatic backflow: Staufix FKA comfort standard: DIN EN 13564 type 3 F installation body: black nominal size: DN 125 (DA 125 mm) installation type: installation in the base plate installation depth (T): 486 mm to 640 mm cover plate: black load class: A 15 ( 2000 , 5 t) Control line / cable length: 5 m Mains voltage / frequency: 230 V AC / 50 Hz Protection class: IP 54 (switching device) Protection class: IP 68 (motor)
