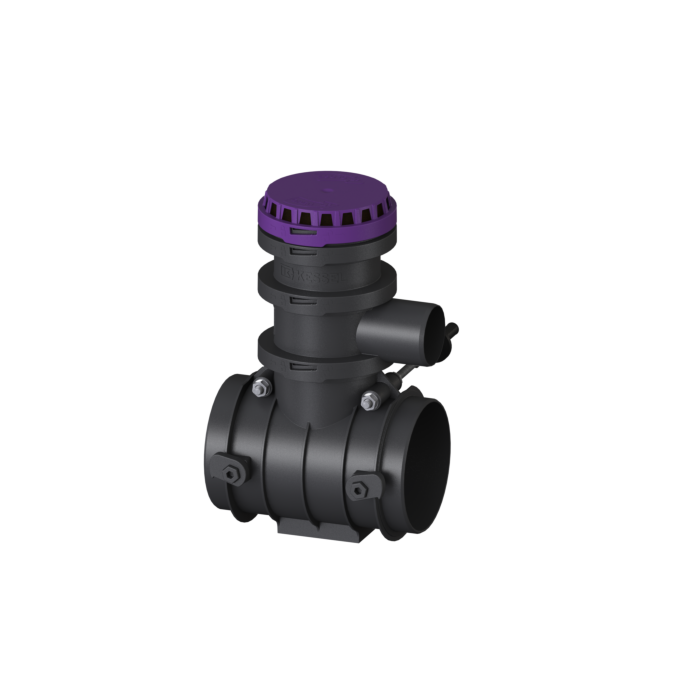

Kessel CleverVent ventilation diverter 23001
The ventilation diverter for safe supply and exhaust ventilation – innovative, reliable, flexible
Our alternative ventilation unit sets new standards for the venting lines of lifting stations and grease separators. With state-of-the-art technology and a clever design, it ensures safe operation – even in the event of backflow.
Automatic safety: Equipped with two float valves that close automatically in case of backflow, thus reliably protecting your system.
Dual functionality: Under normal operation, ventilation occurs directly via the sewer system. In case of backflow, an activated carbon filter takes over, ensuring ventilation via the room. Under normal operation, the filter remains dry and unused, which extends its lifespan.
Easy maintenance without tools: The modular design allows quick and convenient access to the inside of the unit.
Maximum flexibility: CleverVent can be easily adapted below the backflow level - in gravity drainage systems with various socket and spigot dimensions (DN 90-200) (accessories not included).
General characteristics
Color: black
Material: PP
Wastewater type: containing fecal matter and free of fecal matter
Installation situation: exposed wastewater pipe, gravity drainage
Delivery condition: Modular kit for on-site assembly
Mounting: Soundproof wall plugs for load-bearing walls are included.
Air exchange rate: 15 l/s
Dimensions
Net weight: 2.92 kg
Gross weight: 4.42 kg
Length: 250 mm
Width: 221 mm
Height: 422 mm
Packaging dimensions (length): 378 mm
Packaging dimensions (width): 378 mm
Packaging dimensions (height): 515 mm
Container/Base body
Vent connection (DN): 70
Nozzle design: optional
