Kaldewei Nexsys shower tray with 4-in-1 mounting system
Kaldewei Nexsys shower tray combines a design-strong shower surface made of durable Kaldewei steel enamel and a slim gutter, which fits flush into the purist overall picture. But not only visually Nexsys is revolutionizing the market for showers. Also, with the installation Kaldewei goes with Nexsys new ways. Thus, the already pre-assembled system consisting of gutter, slope support, sealing tape and shower tray can be inserted directly into the screed recess after leveling - a significant time saving for the installer. Due to the low construction height, flush mounting is possible even with a small overall depth. Since Nexsys presents itself without any interior contours, the Kaldewei Nexsys shower trays are ideally suited for fitting into the tile pattern of the bathroom - like a large enameled tile with integrated gutter drainage. In addition, an optimal sound insulation is ensured by the enclosed sound insulation tape.
-

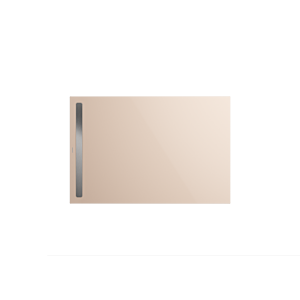

Kaldewei Nexsys shower tray 412646300030 bahama beige, 90 x 160 x 3, 1930 cm, 1930Available for order delivery time: 10-28 working daysShipping Cost Points: 3500 -
Kaldewei Nexsys shower tray 412646300199 manhattan, 90 x 160 x 3, 1930 cm, 1930Available for order delivery time: 10-28 working daysShipping Cost Points: 3500 -

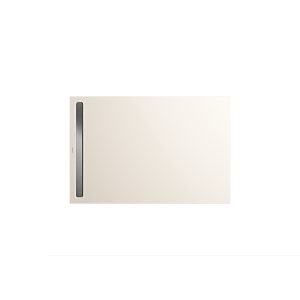

Kaldewei Nexsys shower tray 412646300231 pergamon, 90 x 160 x 3, 1930 cm, 1930Available for order delivery time: 10-28 working daysShipping Cost Points: 3500 -
Kaldewei Nexsys shower tray 412646300701 black, 90 x 160 x 3, 1930 cm, 1930Available for order delivery time: 10-28 working daysShipping Cost Points: 3500 -
Kaldewei Nexsys shower tray 412646300711 alpine white matt, 90 x 160 x 3, 1930 cm, 1930Available for order delivery time: 10-28 working daysShipping Cost Points: 3500 -

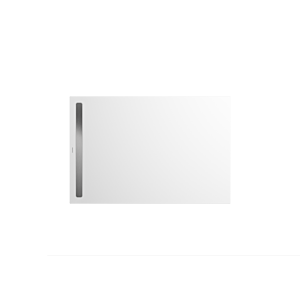

Kaldewei Nexsys shower tray 412646302711 Secure- Plus , alpine white matt, 90 x 160 x 3, 1930 cm, 1930Available for order delivery time: 10-28 working daysShipping Cost Points: 3500 -

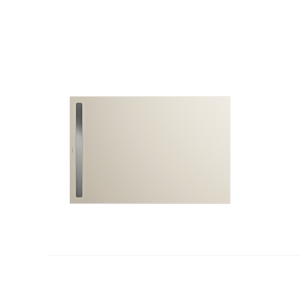

Kaldewei Nexsys shower tray 412646302728 Secure- Plus , seashell cream matt, 90 x 160 x 3, 1930 cm, 1930Available for order delivery time: 10-28 working daysShipping Cost Points: 3500 -
Kaldewei Nexsys shower tray 412646303001 pearl effect, white, 90 x 160 x 3, 1930 cm, 1930Available for order delivery time: 10-28 working daysShipping Cost Points: 3500 -
Kaldewei Nexsys shower tray 412646303030 pearl effect, bahama beige, 90 x 160 x 3, 1930 cm, 1930Available for order delivery time: 10-28 working daysShipping Cost Points: 3500 -
Kaldewei Nexsys shower tray 412646303199 pearl effect, manhattan, 90 x 160 x 3, 1930 cm, 1930Available for order delivery time: 10-28 working daysShipping Cost Points: 3500 -
Kaldewei Nexsys shower tray 412646303231 pearl effect, pergamon, 90 x 160 x 3, 1930 cm, 1930Available for order delivery time: 10-28 working daysShipping Cost Points: 3500 -

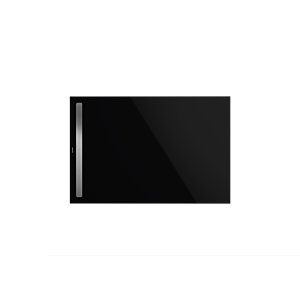

Kaldewei Nexsys shower tray 412646303701 pearl effect, black, 90 x 160 x 3, 1930 cm, 1930Available for order delivery time: 10-28 working daysShipping Cost Points: 3500
The 4 simple installation steps of a Kaldewei Nexsys shower surface
The Kaldewei Nexsys shower area is characterized by its 4-in-1 mounting system. All components required for the installation of the shower are already pre-assembled and thus save time when searching for the items as well as when installing the shower area - the revolutionary shower area is installed in just four simple steps.
Step 1 - Install the drain: As with conventional shower surfaces, the drain from Kaldewei Nexsys is positioned and connected in the leveled floor screed recess with a nominal shower size of + 15 mm.
Step 2 - leveling out the height: Now the leveling is done by making a screed base or - without any drying times - by using substructure elements made of hard foam. You can find information on determining the correct height in the installation instructions for your Kaldewei Nexsys shower area.
Step 3 - Install the shower area: After the height has been leveled, the support including the shower area is put on. Then connect the integrated shower channel to the drain. The pre-assembled sealing strips are then inserted into the composite seal and the tile work can be completed.
Step 4 - Insert the design panel: Finally, only the design panel is inserted. This is available in 5 different versions.
