Jung Pumpen U6K ES drainage pump JP00227, 4-meter pipe, for drainage systems

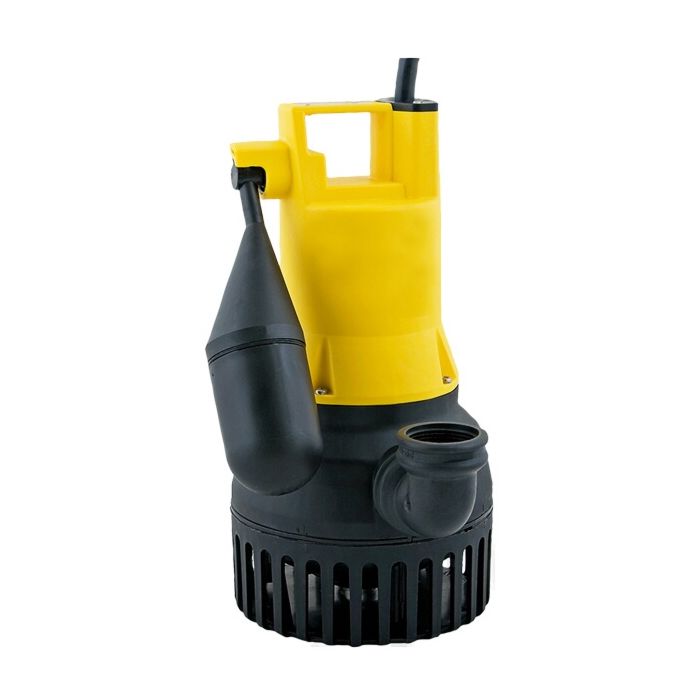

Jung Pumpen U6K ES drainage pump

• Article number: JP00227
• for drainage
• Submersible drainage pump
• 4 m cable with integrated automatic switching device
• fully floodable
• Longitudinally watertight potted cable entry, vertical single-stage, dry-running safe
• Medium-side rotation-direction-independent silicon carbide mechanical seal, as well as oil chamber and radial shaft seal to the engine compartment
• Continuous operation possible in the surfaced state
• Built-in, automatically restarting, temperature-dependent motor protection
• Motor housing and rotor shaft (fully encapsulated) made of stainless steel
• Pump housing and impeller made of plastic
• 90° connecting elbow (2x 1 1/4" internal thread) included in delivery
• Power cord with Schuko plug
• VDE-tested
• LGA type-tested according to DIN EN 12050-2
• Protection class: IP 68
• Free passage: 10 / 20 mm
• Flow rate: Q = 15 - 1 m³/h
• Delivery head: H = 1 - 8.5 m
• Motor power: P2 = 0.49 kW
• Rotational speed: n = 2850 rpm
• Current type/voltage: 230 V (W-current)
• Cable length: 4 m
• Cable type: H07RN-F 3G1.0
• Radial pressure port: 1 1/4", outside
• Weight: 5.5 kg
