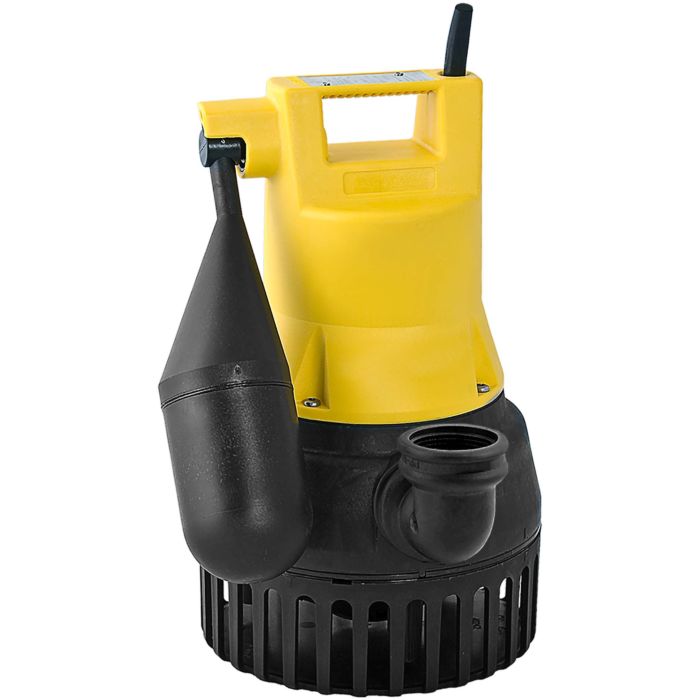

Jung Pumpen U5KS basement drainage pump JP09417, 10-meter hose, with float switch

Jung Pumpen U5KS basement drainage pump

Article number: JP09417
Submersible basement drainage pump U 5 KS
10 m cable
with automatic transmission
fully floodable
longitudinally watertight potted cable entry
vertical single-stage
dry-running safe
GID technology for increased operational reliability
Water-side radial shaft seals (2-fold) as well as oil chamber and radial shaft seal
to the engine compartment
Built-in, automatically restarting, temperature-dependent motor protection
Flushing device
Continuous operation possible in the surfaced state
Motor housing and rotor shaft made of stainless steel
Pump housing and impeller made of plastic
Check valve and 90° connecting elbow (2 x 1 1/4" internal thread) included in delivery
built-in flat extraction system
Power cord with Schuko plug
VDE-tested
LGA type-tested according to DIN EN 12050
Protection class: IP 68
Clear passage: 20 mm
Flow rate: Q = 11 - 2 m³/h
Delivery head: H = 1 - 8 m
Motor power: P2 = 0.38 kW
Rotational speed: n = 2716 rpm
Current type/voltage: 230 V (W-current)
Cable length: 10 m
Cable type: H05RN-F3G0.75
Radial pressure port: 1 1/4", outside
Weight: 5.4 kg
