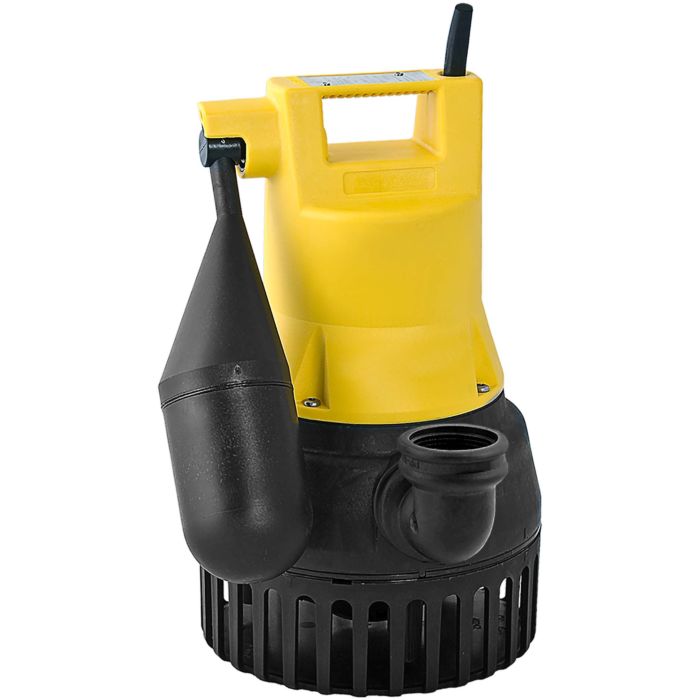

Jung Pumpen U5KS basement drainage pump JP09387, 4-meter hose, with float switch

Jung Pumpen U5KS basement drainage pump

• Article number: JP09387
• U5KS submersible basement drainage pump
• 4 m cable
• with automatic transmission
• fully floodable
• longitudinally watertight potted cable entry
• vertical single-stage
• dry-running safe
• GID technology for increased operational reliability
• Water-side radial shaft seals (2-fold) as well as oil chamber and radial shaft seal to the engine compartment
• Built-in, automatically restarting, temperature-dependent motor protection
• Flushing device
• Continuous operation possible in the surfaced state
• Motor housing and rotor shaft made of stainless steel
• Pump housing and impeller made of plastic
• Check valve and 90° connecting elbow (2 x 1 1/4" internal thread) included in delivery
• built-in flat extraction system
• Power cord with Schuko plug
• VDE-tested
• LGA type-tested according to DIN EN 12050
• Protection class: IP 68
• Clear passage: 20 mm
• Flow rate: Q = 11 - 2 m³/h
• Delivery head: H = 1 - 8 m
• Motor power: P2 = 0.38 kW
• Rotational speed: n = 2716 rpm
• Current type/voltage: 230 V (W-current)
• Cable length: 3 m
• Cable type: H05RN-F3G0.75
• Radial pressure port: 1 1/4", outside
• Weight: 4.5 kg
