- Article number: JP09386
- without float switch
- Basement drainage pump - submersible motor pump U 5 K
- 10 m cable
- fully floodable
- longitudinally watertight potted cable entry
- vertical single-stage
- dry-running safe
- GID technology for increased operational reliability
- Water-side radial shaft seals (2-fold) as well as oil chamber and radial shaft seal to the engine compartment
- Built-in, automatically restarting, temperature-dependent motor protection
- Flushing device
- Continuous operation possible in the surfaced state
- Motor housing and motor shaft made of stainless steel
- Pump housing and impeller made of plastic
- Check valve and 90° connecting elbow (2 x 1 1/4" internal thread) included in delivery
- built-in flat extraction system
- Power cord with Schuko plug
- VDE-tested
- LGA type-tested according to DIN EN 12050
- Protection class: IP 68
- Clear passage: 20 mm
- Flow rate: Q = 11 - 2 m³/h
- Delivery head: H = 1 - 8 m
- Motor power: P2 = 0.38 kW
- Rotational speed: n = 2716 rpm
- Current type/voltage: 230 V (W-current)
- Cable length: 10 m
- Cable type: H05RN-F3G0.75
- Radial pressure port: 1 1/4", outside
- Weight: 4.7 kg

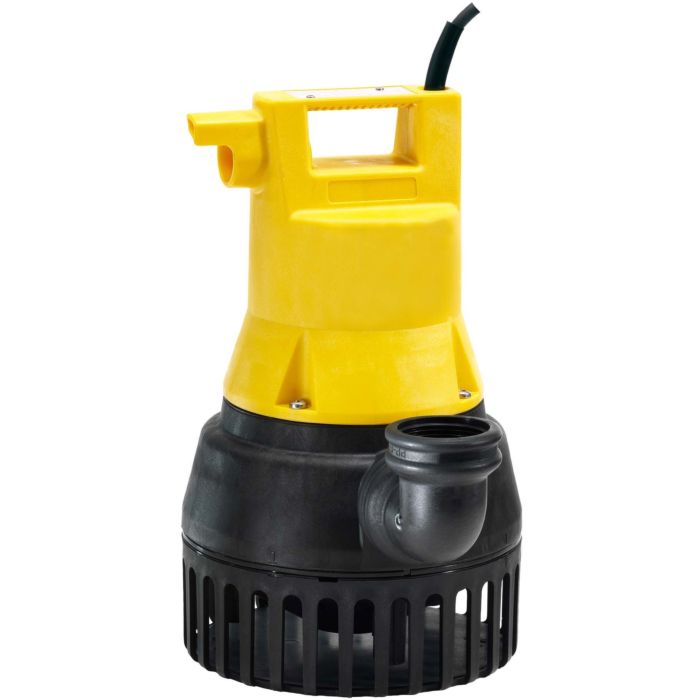

Jung Pumpen U5K basement drainage pump JP09386, 10-meter hose, without float switch
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 500
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details
Jung Pumpen U5K basement drainage pump
