- Level sensor for water level-dependent switching on of a downstream control system

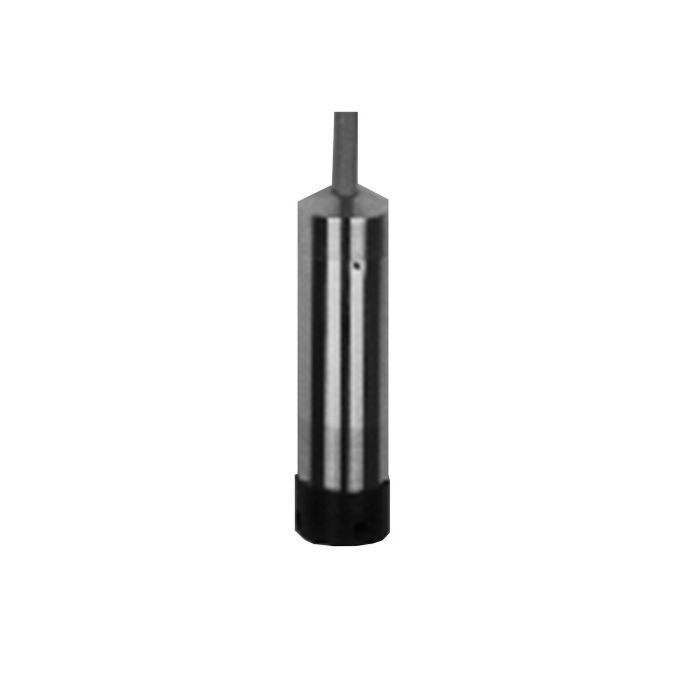

- Stainless steel 1.4571 immersion probe with 10 m PUR cable and integrated air hose for atmospheric pressure equalization
- Ceramic separation membrane
- Overpressure resistant up to 10 mWS and short-circuit resistant
- Output signal 4-20 mA
- temperature compensated
- 2-wire technology
- Cable gland with lock nut for attachment to a crossbeam
- Fluid pressure is transferred to a separation membrane in a submersible probe.
- which is coupled to a semiconductor sensor
- which transmits a standard current signal of 4-20 mA to the microprocessor-controlled evaluation unit via an amplifier.
Jung Pumpen submersible probe JP44809 10 m, explosion-proof, for downstream control
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 250
Part Number: JP44809
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details
Jung Pumpen submersible probe JP44809
