- Vertical single-stage submersible motor pump with vertical and horizontal pressure outlet and high operational reliability
- dry-running, medium-side SIC mechanical seal and motor-side mechanical seal
- interchangeable
- longitudinally watertight potted cable entry
- engine housing
- Impeller and shaft made of stainless steel
- Sieve base made of plastic
- Cable 10 m H07 RN-F 3G1
- 0
- Free passage 10 mm
- Pressure port 2
- Pumped medium max 40 °C
- Maximum flow rate Q max 38 m3/h
- Maximum delivery head H 18 m
- Weight 26 kg
- Voltage 1/N/PEx230 V
- 50 Hz
- Electricity 9
- 8 A
- Power P2 1
- 6 kW
- Speed 2900 rpm
- Protection class IP 68
- Motor protection winding thermostats

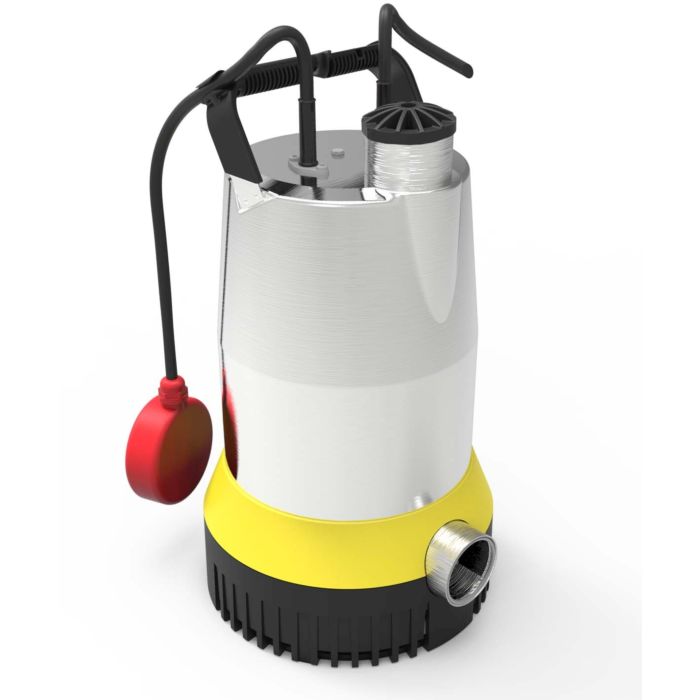

Jung Pumpen submersible motor pump JP47338 UV 620-1 S, 230 V, without plug, 10 m cable
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 3500
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details
Jung Pumpen submersible motor pump JP47338
Notice
Please note that gas and electric appliances require increased mains voltage for proper operation. These appliances are not equipped with a two-pin mains plug. The installation of non-pluggable appliances must be carried out by the respective network operator or a certified specialist company, which can also assist you in obtaining any necessary approval from the relevant network operator for the installation of the appliance.
Downloads (6)
Product Safety
Manufacturer
JUNG PUMPEN GmbH
E-Mail
info@jung-pumpen.de
Address
Industriestraße 4-6
33803 Steinhagen
Germany
