- buoyancy-proof
- PE
- Suitable for vehicles up to class B 125
- for mounting a submersible dirty water pump
- deposit-free collection area
- 1 socket DN 150 for the inlet
- 3 pipe fittings DN 70/100 for ventilation or cable duct
- Assembled sliding pipe system DN 32
- PP pipeline
- vertically closing check valve
- Ball valve operable from above
- 5 m nylon rope and stainless steel pressure line outlet R 1 1/4
- extendable to an installation depth of 2
- 9 m (Class A) or 2
- 75 m (Class B)
- Compensation for level differences with a support ring
- Dimensions without cover: Nominal diameter: 800 mm
- Overall height: 1610 mm
- Sole inlet from above: 1160 mm
- Sole pressure port from above: 760 mm
- Container volume: 750 l
- Weight: 84 kg

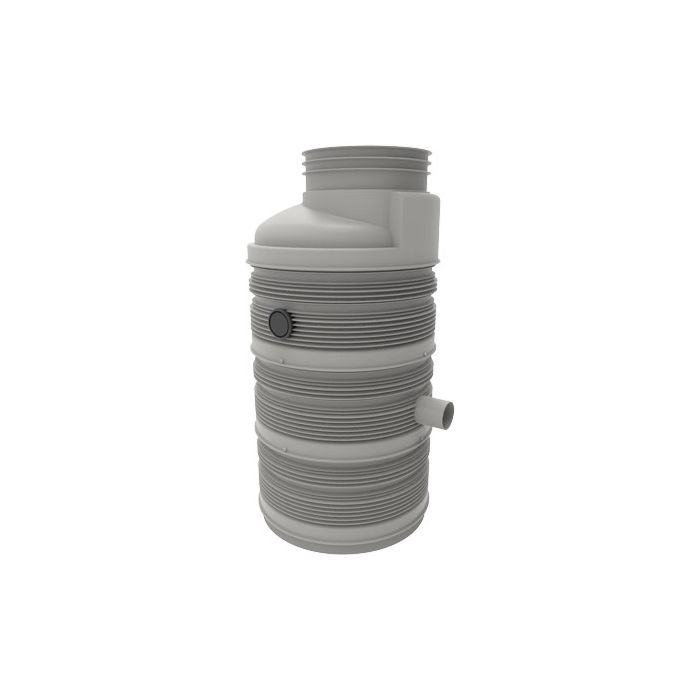

Jung Pumpen SKS wastewater shaft JP50304 D 1000-D 50, without pump
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 200
Part Number: JP50304
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details
Jung Pumpen SKS wastewater shaft JP50304
