- buoyancy-proof
- PE
- Suitable for vehicles up to class B 125
- for mounting a submersible dirty water pump
- deposit-free collection area
- 1 socket DN 150 for the inlet
- 3 pipe fittings DN 70/100 for ventilation or cable duct
- Assembled sliding pipe system DN 32
- PP pipeline
- vertically closing check valve
- Ball valve operable from above
- 5 m nylon rope and stainless steel pressure line outlet R 1 1/4
- extendable to an installation depth of 2
- 9 m (Class A) or 2
- 75 m (Class B)
- Compensation for level differences with a support ring
- Dimensions without cover: Nominal diameter: 800 mm
- Overall height: 1610 mm
- Sole inlet from above: 1160 mm
- Sole pressure port from above: 760 mm
- Container volume: 750 l
- Weight: 84 kg

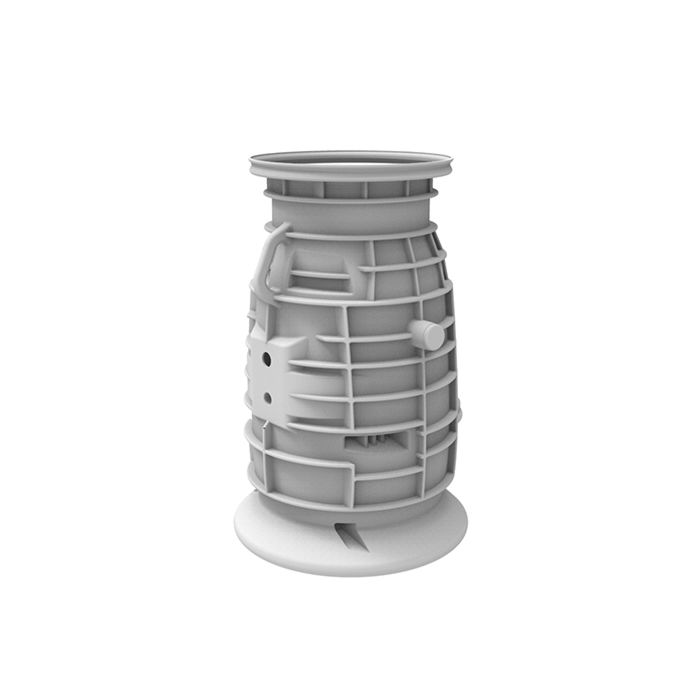

Jung Pumpen SKS wastewater shaft JP47348 B 800-50, without pump
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 3500
Part Number: JP47348
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details
Jung Pumpen SKS wastewater shaft JP47348
Notice
Please note that gas and electric appliances require increased mains voltage for proper operation. These appliances are not equipped with a two-pin mains plug. The installation of non-pluggable appliances must be carried out by the respective network operator or a certified specialist company, which can also assist you in obtaining any necessary approval from the relevant network operator for the installation of the appliance.
Downloads (2)
Product Safety
Manufacturer
JUNG PUMPEN GmbH
E-Mail
info@jung-pumpen.de
Address
Industriestraße 4-6
33803 Steinhagen
Germany
