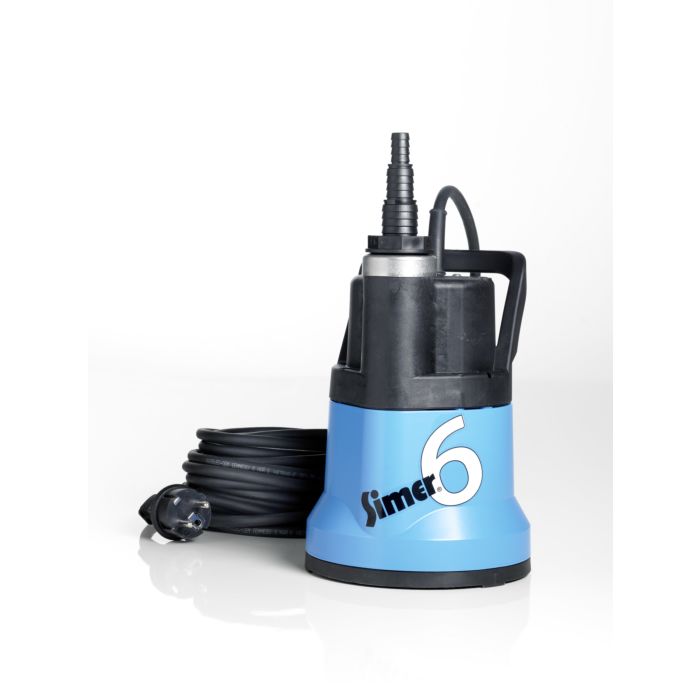

Jung Pumpen dirty water pump Simer 6 OD6601G-06
Vertical single-stage submersible pump
with vertical pressure outlet.
Item No. OD6601G-06
- Flat suction down to 2 mm
- S1 operation possible
- Mechanical seal
- Power cord replaceable with
Schuko plug
- Hose connection and
Non-return valve included
Motor housing made of die-cast aluminum
Pump housing, hood and impeller made of GRP
Seal on media side: Mechanical seal
Engine side seal: Shaft seal
Stainless steel rotor shaft
Free passage: 2 mm
Pressure port: 1 1/4'' inside
Medium: max 50 degrees C
Flow rate: max 6 m³/h
Delivery head: max 6.5 m
Weight: 5.2 kg
Voltage: 230 V, 50 Hz
Current: 1 A
Power P1: 240 W
Speed: 2100 rpm
Protection class: IP 68
Motor protection: winding thermostat
Cable: 10 m H07RN8-F 3G1
