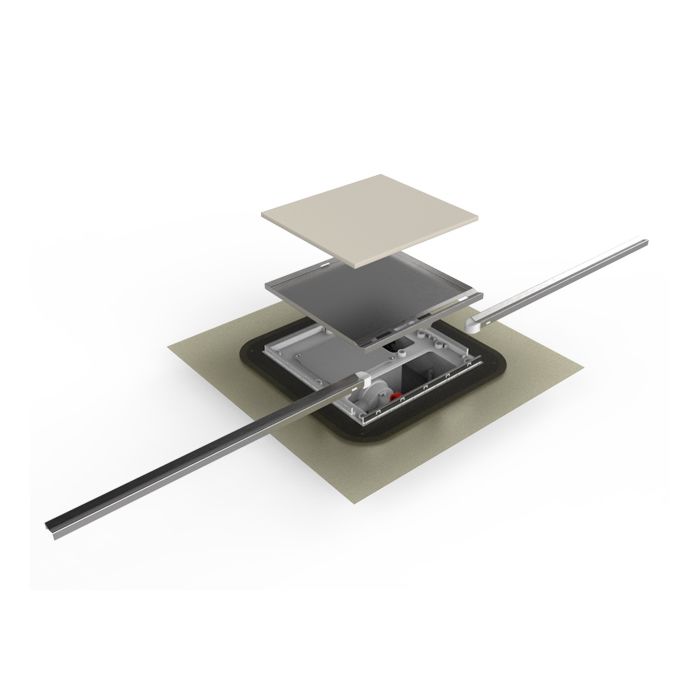

It disposes of wastewater from a level-entry, tiled shower and transports the wastewater to the nearest downpipe.
The pump has a maintenance-free synchronous motor.
The integrated pump transports the wastewater via a pressure line to the next downpipe.
Pressure port with integrated check valve
Sealing fleece for on-site installation
Thin-bed waterproofing installed at the factory
Cleaning the hydraulics without tools
Collection container: 104 x 352 x 352 mm
Pressure port: 1" internal thread
Operating voltage: 1/N/PEx230 V
Motor power P1: 30 W
Motor protection: in the winding
Protection class: IP 68
Flow rate Q: max 25 l/min
Delivery head H: max 1.3 m
Cable: 5 m H05VV-F-3G0.75 GR
Weight: 3.7 kg
