Jung Pumpen Pks plastic shaft JP47345 B 800 D32, double pumping station, buoyancy-proof, PE, white

Name: Jung Pumpen Pks plastic shaft JP47345 B 800 D32, double pumping station, buoyancy-proof, PE, white
Brand: Jung
SKU: JP47345
Price: 2397.23 EUR
Availability: InStock

€2,397.23

instead of €5,282.51 **

-55% You're saving €2,885.27

Incl. 19% VAT , plus shipping costs

Available for order delivery time: 10-28 working days

Shipping Cost Points: 3500

Part Number: JP47345

Questions about the article?

+49 241-51832611 Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm

info@skybad.de

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Illustration may differ from the actual product. Delivery without accessories and decoration.

Details

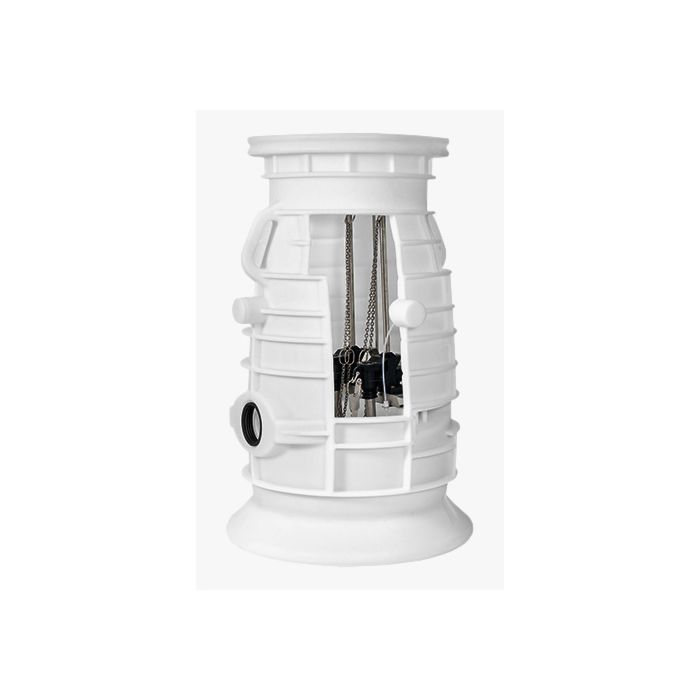

Jung Pumpen Pks plastic shaft JP47345

Suitable for vehicles up to class B 125
Pump shaft for accommodating two MultiCut submersible wastewater pumps with/without explosion protection via a DN 32 pressure pipe unit
deposit-free collection area
2 sockets DN 150 for the inlet
Ready for connection with seal
3 pipe fittings DN 100 for ventilation or cable duct
Shaft components made of corrosion-resistant materials
Crossbeam and coupling system DN 32 made of polyphthalamide (PPA)
Stainless steel ball valve with extension and safety lever
Sliding tube for pump guidance with stainless steel bracket
Stainless steel pressure line outlet 1 1/4'
With optional PSV extensions, the shaft can reach an installation depth of up to 2
75 m (Class B) or 2
95 m (Class A)
Level differences can be compensated for with a support ring.
For cleaning and maintenance, the pressure pipe unit, including pump and ball check valve, is pulled out of the shaft.
Dimensions without cover: Nominal diameter: 800 mm
Total height 1610 mm
Sole inlet from above: 1160 mm
Sole pressure port from above: 930 mm
Container volume: 740 l
Remaining volume: 85 l
Weight: 79 kg
