- Buoyancy-proof and groundwater-tight pump shaft according to DIN EN 13598-2
- with incline
- made of polypropylene (PP)
- for mounting a submersible wastewater pump with/without explosion protection
- Suitable for vehicles up to class D 400
- Lower part with pipe connection OD/DN 160 for the inlet
- 2 sockets DN 100 for ventilation/cable conduit and stainless steel pressure fitting R 1 1/2'
- Cone 1000/625 support ring for receiving a manhole cover Ø = 610 mm
- The individual segments are sealed with lip seals.
- clutch foot
- Pressure pipe DN 40 (stainless steel)
- Ball valve DN 40 (PPA)
- Maintenance valve DN 40 (stainless steel) and flushing connection are already installed in the lower part.
- Dimensions without cover: 1000 mm - Nominal diameter
- 2275 mm - Total height
- 1575 mm - sole inlet from above
- 0995 mm - Sole pressure port from above
- 1372 l - container volume
- 280 kg - weight

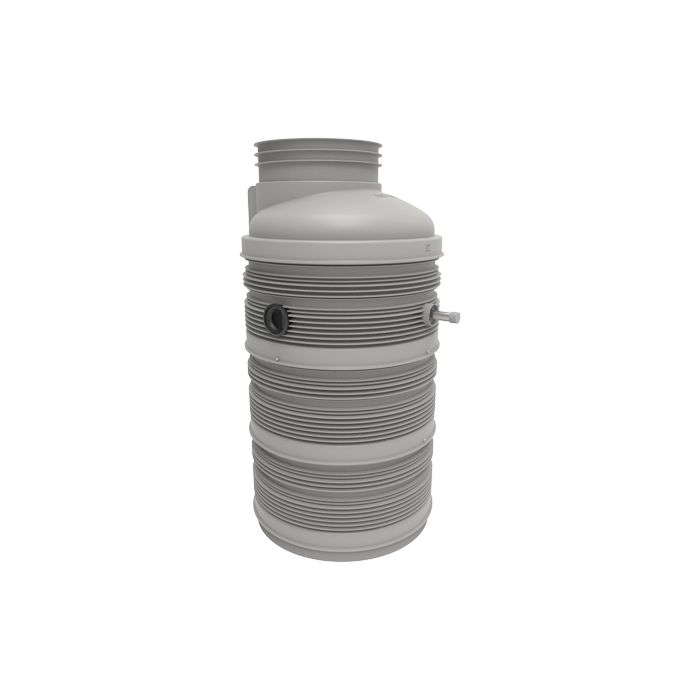

Jung Pumpen Pks plastic shaft JP44379 D 1000-D65, drive-over pump shaft
€12,751.94
instead of
€18,198.68
**
-30%
You're saving
€5,446.74
Incl. 19% VAT ,
plus shipping costs
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 3500
Part Number: JP44379
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details
Jung Pumpen Pks plastic shaft JP44379
