Jung Pumpen Pks plastic shaft JP44367 D 1000-DLE, buoyancy-proof

Name: Jung Pumpen Pks plastic shaft JP44367 D 1000-DLE, buoyancy-proof
Brand: Jung
SKU: JP44367
Price: 4362.93 EUR
Availability: InStock

€4,362.93

instead of €6,036.30 **

-28% You're saving €1,673.37

Incl. 19% VAT , plus shipping costs

Available for order delivery time: 10-28 working days

Shipping Cost Points: 3500

Part Number: JP44367

Questions about the article?

+49 241-51832611 Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm

info@skybad.de

Skip to the end of the images gallery

Skip to the beginning of the images gallery

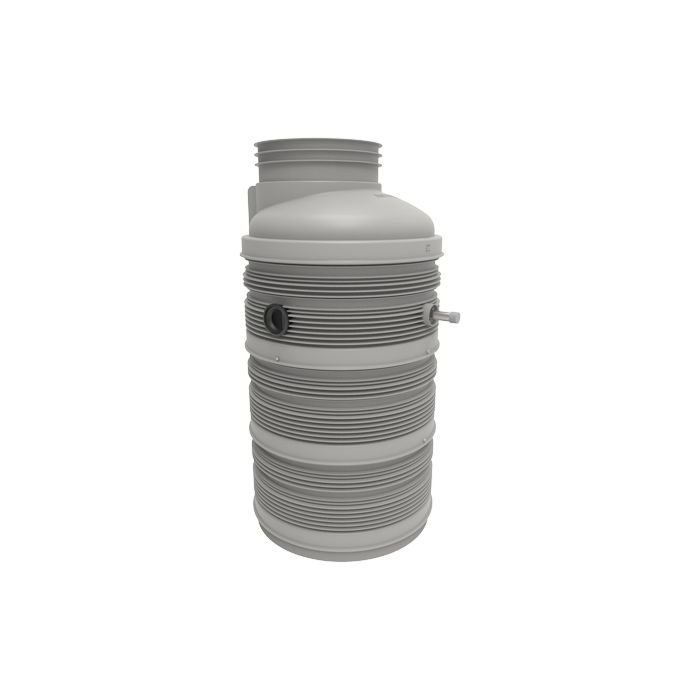

Illustration may differ from the actual product. Delivery without accessories and decoration.

Details

Jung Pumpen Pks plastic shaft JP44367

groundwater-tight according to DIN EN 13598-2
with incline
made of polypropylene (PP)
Suitable for vehicles up to class D 400
is used as a transfer shaft to gravity pipelines
Segmented construction
Manhole base with channel and DN 100 inlet and DN 200 outlet
for process
Cone with ramp and entry opening 610 mm
Support ring for holding a manhole cover 610 mm
Sealing of the individual segments with lip seals
Dimensions without cover: Nominal diameter: 1000 mm
Overall height: 1200 mm
Sole pressure line from top: 1055 mm
Sole free-floating surface from top: 895 mm
Weight: 215 kg
Standard installation depth of 1
The depth of 2 m can be increased to 5 m by using shaft extensions.
Enlarge by 7 m
Accessories PSV-D 1000x500 SG(10)
The required standing height of 2 meters is guaranteed.
