Jung Pumpen Multistream wastewater pump JP09620 10/4 B1, 400 V, without explosion protection

€4,083.75
instead of €5,879.50 **
-31% You're saving €1,795.76
Incl. 19% VAT , plus shipping costs
Available for order delivery time: 10-28 working days
Shipping Cost Points: 3500
Questions about the article?
+49 241-51832611 Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
info@skybad.de

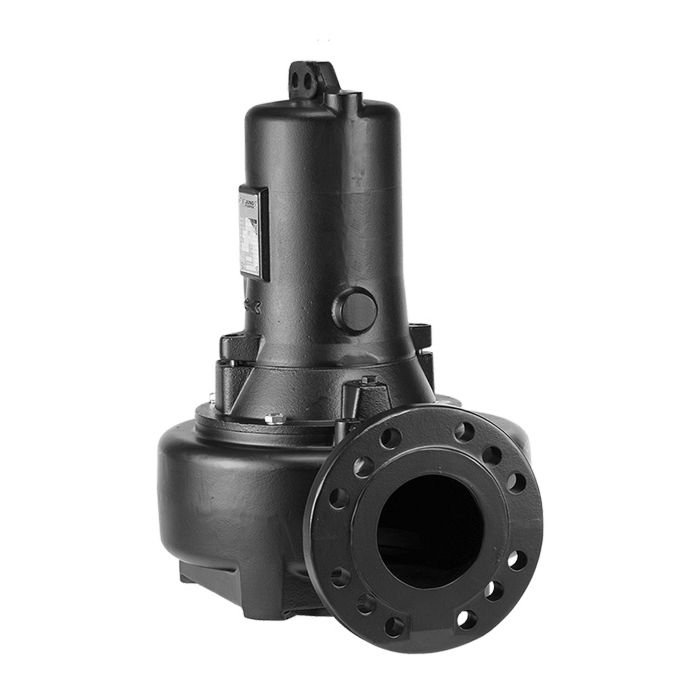

main product photo

Illustration may differ from the actual product. Delivery without accessories and decoration.

Details Chevron Down

Jung Pumpen Multistream wastewater pump JP09620
  • Vertical single-stage submersible motor pump with horizontal pressure outlet and high operational reliability
  • LGA type-tested according to DIN EN 12050
  • Interlock-resistant, adjustable axial gap with grooves
  • dry-running safe
  • Medium-side silicon carbide mechanical seal and motor-side double radial shaft seal with oil chamber and possibility of seal inspection.
  • Longitudinally watertight potted cable entry with pluggable cable connection
  • Wheel: Single-channel wheel
  • Free passage 40 mm
  • Pressure port DN 65 for PN 6/PN 10
  • Pumped medium max 40 degrees °C
  • Flow rate Q: max 38 m3/h
  • Delivery head H: max 13 m
  • Weight 41 kg
  • Voltage 3/PEx400 V
  • 50 Hz
  • Current 2
  • 7 A
  • Power P2: 1
  • 1 kW
  • Speed 2900 rpm
  • direct start mode
  • Protection class IP 68
  • Motor protection: Winding thermostats
  • Cable: 10m H07 RN-F 6G 1
  • 5
