- Vertical single-stage submersible motor pump with horizontal pressure outlet and high operational reliability
- LGA type-tested according to DIN EN 12050
- Interlock-resistant, adjustable axial gap with grooves
- dry-running safe
- Medium-side silicon carbide mechanical seal and motor-side double radial shaft seal with oil chamber and possibility of seal inspection.
- Longitudinally watertight potted cable entry with pluggable cable connection
- Wheel: Single-channel wheel
- Free passage 40 mm
- Pressure port DN 65 for PN 6/PN 10
- Pumped medium max 40 degrees °C
- Flow rate Q: max 38 m3/h
- Delivery head H: max 13 m
- Weight 41 kg
- Voltage 3/PEx400 V
- 50 Hz
- Current 2
- 7 A
- Power P2: 1
- 1 kW
- Speed 2900 rpm
- direct start mode
- Protection class IP 68
- Motor protection: Winding thermostats
- Cable: 10m H07 RN-F 6G 1
- 5

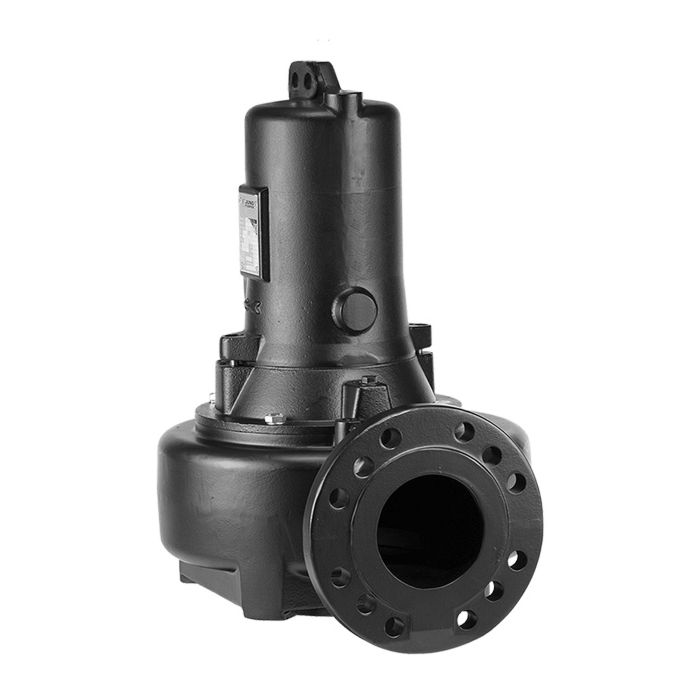

Jung Pumpen Multistream wastewater pump JP09618 25/2 B1, 400 V, without explosion protection
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 3500
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details
Jung Pumpen Multistream wastewater pump JP09618
Notice
Please note that gas and electric appliances require increased mains voltage for proper operation. These appliances are not equipped with a two-pin mains plug. The installation of non-pluggable appliances must be carried out by the respective network operator or a certified specialist company, which can also assist you in obtaining any necessary approval from the relevant network operator for the installation of the appliance.
Shipping information: We ship electrical products exclusively to Germany, France, Poland, Belgium, Austria, Slovenia, Spain and the Netherlands.
