- 2x vertical single-stage submersible motor pump with horizontal pressure outlet
- connected in series via suction pot
- TÜV type-tested according to DIN EN 12050
- external
- adjustable
- hardened stainless steel cutting system and cutting plate with spiral grooves
- dry-running safe
- Silicon carbide mechanical seal on the medium side and double radial shaft seal on the motor side.
- with oil chamber and possibility of seal check
- Longitudinally watertight potted cable entry with pluggable cable connection
- Cutting system with C-shaped cutting geometry achieves almost 200% more cuts per minute compared to previous versions.
- This equates to over 200,000 cuts per minute.
- The proper functioning of the winding thermostats must be ensured by appropriate control.
- additional overcurrent release
- Motor protection switch required

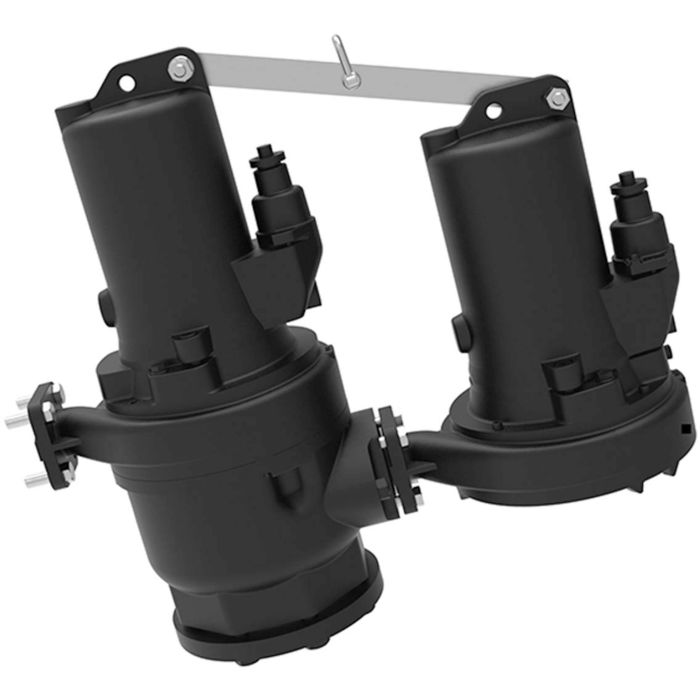

Jung Pumpen MultiCut wastewater pump JP50374 45/2 M TAN, EX, tandem system, explosion-proof
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 100
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details
Jung Pumpen MultiCut wastewater pump JP50374
Notice
Please note that gas and electric appliances require increased mains voltage for proper operation. These appliances are not equipped with a two-pin mains plug. The installation of non-pluggable appliances must be carried out by the respective network operator or a certified specialist company, which can also assist you in obtaining any necessary approval from the relevant network operator for the installation of the appliance.
Shipping information: We ship electrical products exclusively to Germany, France, Poland, Belgium, Austria, Slovenia, Spain and the Netherlands.
