- for level-dependent switching of a direct-starting
- also explosion-proof three-phase pump
- Standard features include two independent level sensors for on/off switching function.
- Automatic emergency activation with alarm notification for increased safety
- ATEX-compliant monitoring of motor temperature and running time selectable
- Operating voltage 3/N/PEx230/400 V
- 50 Hz
- Case with door
- IP 44
- 275 x 250 x 155 mm
- Motor contactor 4
- 0 kW/400 V
- mechanical overcurrent relay 2
- 4-4
- 0 A
- for standard-compliant 3-phase motor current monitoring
- Manual-0-automatic button
- Alarm reset button
- 2 pressure switches (max. 0
- 3 bar)
- Terminal blocks for mains connection

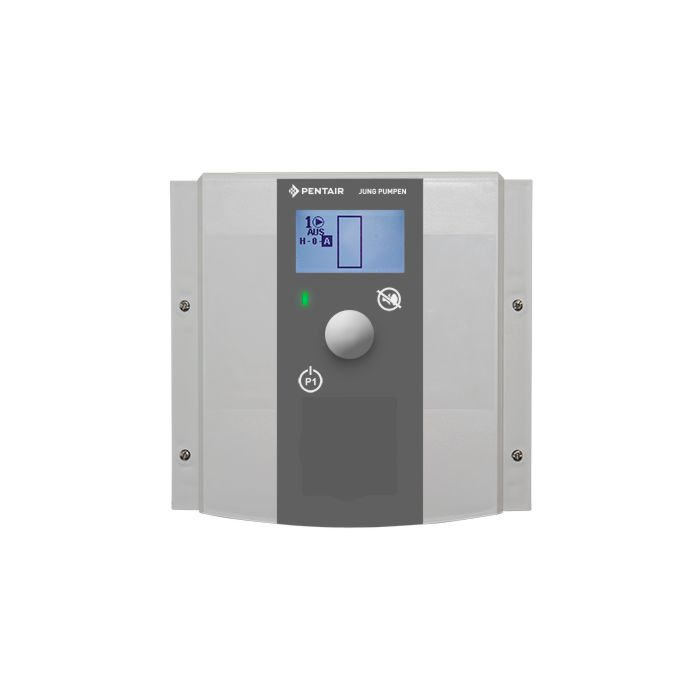

Jung Pumpen microprocessor control JP48288 Highlogo 1-610 LCX 6-9 A, for individual systems
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 250
Part Number: JP48288
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details
Jung Pumps microprocessor control JP48288
