- for level-dependent switching of 2x direct starting
- including explosion-proof three-phase pumps
- Standard features include 2 independent level sensors for on/off switching function.
- Automatic emergency activation with alarm notification for increased safety
- Automatically alternating activation of pump 1 and pump 2
- ATEX-compliant monitoring of motor temperature and running time is selectable.
- Operating voltage 3/N/P Ex230/400 V
- 50 Hz enclosure with door
- IP44
- 250 x 250 x 155 mm
- 2 Motor contactor 4
- 0 kW/400 V
- 2 mechanical motor protection switches 2
- 4-4
- 0 A for standard-compliant 3-phase motor current monitoring
- 2 Hand-0-Automatic Pushbutton
- Alarm reset button
- 2 compressed air bells, each with 10m of air duct
- 2 pressure switches
- Dry-running protection
- Terminal blocks for mains connection
- All settings are menu-driven via a multifunction wheel and displayed in plain text on an illuminated graphic display.

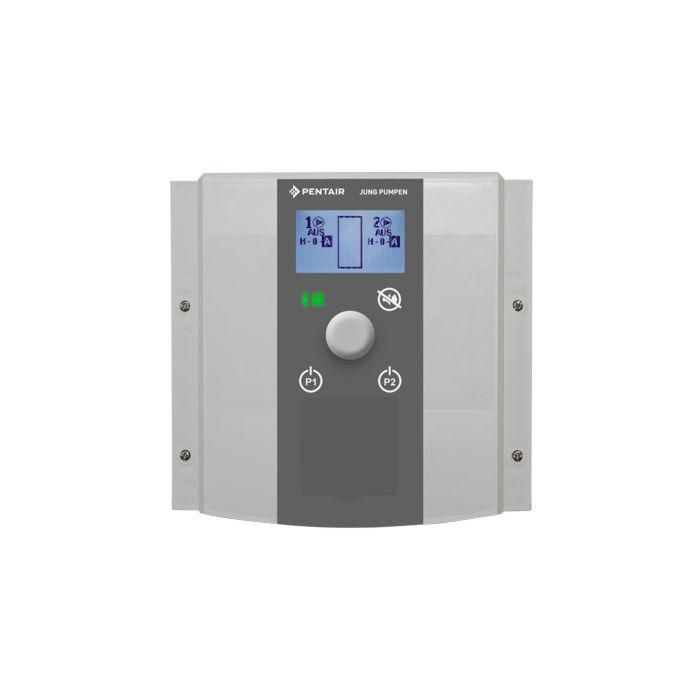

Jung Pumpen HighLogo control unit JP47998 2-25, 2.5-4.0 A motor protection, 16 A fuse
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 250
Part Number: JP47998
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details
Jung Pumpen HighLogo control unit JP47998
