Jung Pumpen Hebefix above-ground tank JP48188 200-32, as a single or double system

Name: Jung Pumpen Hebefix above-ground tank JP48188 200-32, as a single or double system
Brand: Jung
SKU: JP48188
Price: 1269.16 EUR
Availability: InStock

€1,269.16

instead of €2,603.14 **

-51% You're saving €1,333.98

Incl. 19% VAT , plus shipping costs

Available for order delivery time: 10-28 working days

Shipping Cost Points: 3500

Part Number: JP48188

Questions about the article?

+49 241-51832611 Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm

info@skybad.de

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Illustration may differ from the actual product. Delivery without accessories and decoration.

Details

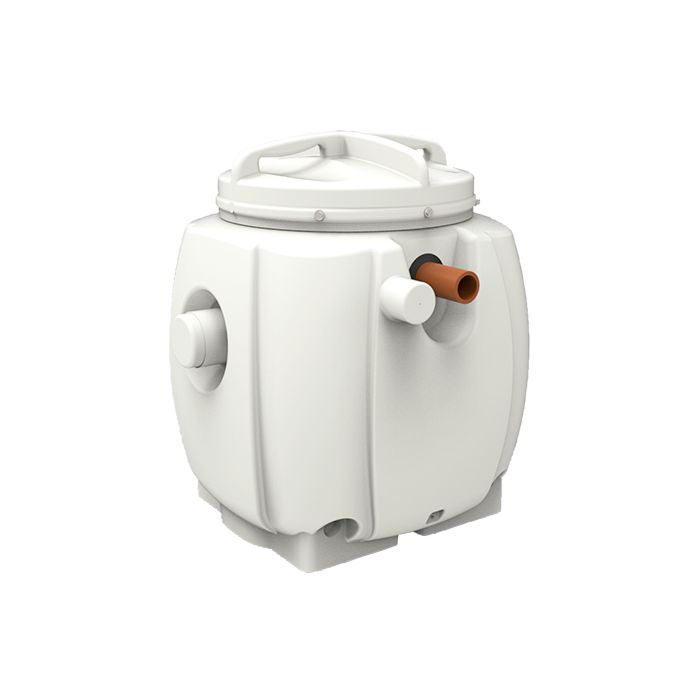

Jung Pumpen Hebefix above-ground container JP48188

PE collection container with screw-on lid for accommodating two U3K type wastewater pumps
U5K
U6K
US62
US73
US102
US 103
US73 Ex or US 103 Ex
also usable as a standalone station
Then choose a pump with an integrated float switch.
It has one DN 100 inlet and two DN 150/100 inlets.
For ventilation, a DN 70 connection and for the pressure line a 1 1/4" thread.
Two check valves with elastic connectors are included.
820 x 840 x 840 mm
Inlet nozzle height: 440 mm
Pressure outlet height: 565 mm
Height of ventilation duct DN 70: 565 mm
Weight: 26 kg
Volume: 240 l

Notice

Please note that gas and electric appliances require increased mains voltage for proper operation. These appliances are not equipped with a two-pin mains plug. The installation of non-pluggable appliances must be carried out by the respective network operator or a certified specialist company, which can also assist you in obtaining any necessary approval from the relevant network operator for the installation of the appliance.
