- made of PE for mounting a U3KS type wastewater pump
- U5KS
- U3KS special
- U6K ES/DS
- US 62 ES/DS
- US 102 ES/DS
- US 73 ES/DS or US 103 ES/DS
- Designed for the disposal of wastewater free of fecal matter above and below the backflow level
- e.g. water from washing machines and washbasins
- Wastewater from commercial establishments and condensate from gas condensing boilers
- Disposal of a ground-level shower tray is possible with the U3KS in conjunction with a special float switch for low switching heights.
- The tank is equipped with 4 lateral combination inlets DN 100/DN 50.
- Two of these are at a low level for connecting a shower tray.
- Buoyancy control
- Pump lock
- two recessed handles
- Container lid with pre-assembled seal and snap closure
- Disassemblable without tools
- Cover for odor-proof cable penetration with strain relief for the cable and ventilation valve with activated carbon filter
- All necessary parts of the tank pressure line are included loosely.
- with elastic connection for sound-insulating flexible connection and quick-release screw connection for tool-free disassembly of the pump.
- Pressure line not pre-assembled
- for optimal adaptation to local installation conditions
- The pressure outlet on the container is pre-centered on both sides.
- Version as threaded nipple 1 1/2'
- Also included in the scope of delivery: DN 50 push-in seal
- DN 100 EPDM connecting sleeve with 2 pipe clamps 4'
- and non-return valve DN 40 with 2x IG 1 1/2'
- Alarm system and washing machine stop available as accessories
- Battery compatible, also works independently of mains power supply
- Container volume: approx. 75 l
- 500 x 570 x 390 mm
- Weight: approx. 8
- 6 kg

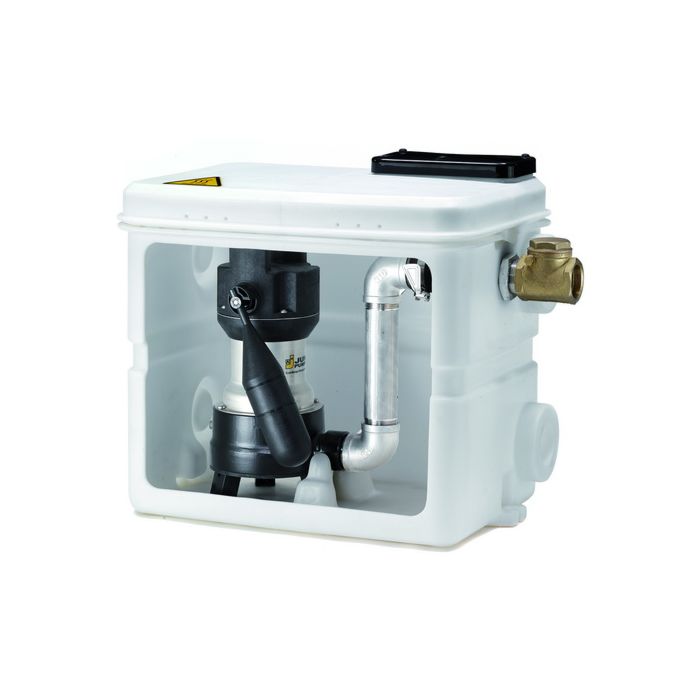

Jung Pumpen Hebefix above-ground tank JP09348 100 H, for hot water, without pump
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 1100
Part Number: JP09348
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details
Jung Pumpen Hebefix above-ground container JP09348
Notice
Please note that gas and electric appliances require increased mains voltage for proper operation. These appliances are not equipped with a two-pin mains plug. The installation of non-pluggable appliances must be carried out by the respective network operator or a certified specialist company, which can also assist you in obtaining any necessary approval from the relevant network operator for the installation of the appliance.
Shipping information: We ship electrical products exclusively to Germany, France, Poland, Belgium, Austria, Slovenia, Spain and the Netherlands.
