- TÜV type-tested according to DIN EN 12050
- plug-and-play
- Suitable for wastewater free of fecal matter above and below the backflow level.
- Installation in standard pre-wall systems is possible.
- Handwashing basins can be connected
- Shower
- Bidets and water softening systems for single-family and two-family homes
- Disposes of condensate from refrigerated display cases and air conditioning systems
- Wastewater from dishwashers
- in tea kitchens and hot water up to 55 °C or briefly 70 °C
- Weight: 4 kg
- Container: 135 x 320 x 176 mm
- 1 pressure outlet
- 2 inlet nozzles 50 mm
- 1 inlet at the top 40 mm
- Connecting cuffs
- Plug-in seals
- Outlet manifold (elastomer)
- integrated non-return valve
- Ventilation with activated carbon filter
- Submersible motor pump
- vertical
- single-stage
- dry-running safe
- mounted in the container
- automatically switching back on
- temperature-dependent motor protection
- Primary seal: Mechanical seal
- Motor housing and rotor shaft made of stainless steel
- Pump housing and impeller made of plastic
- Protection class: IP 44
- Free passage: 10 mm
- Flow rate: Q max 4
- 3 m³/h
- Delivery head: H max 5 m
- Motor power: P2 = 110 W
- Speed: 2900 rpm
- Voltage: 1/N/PE 230V
- 50 Hz
- Cable: 2 m H05VV-F 3G0
- 75

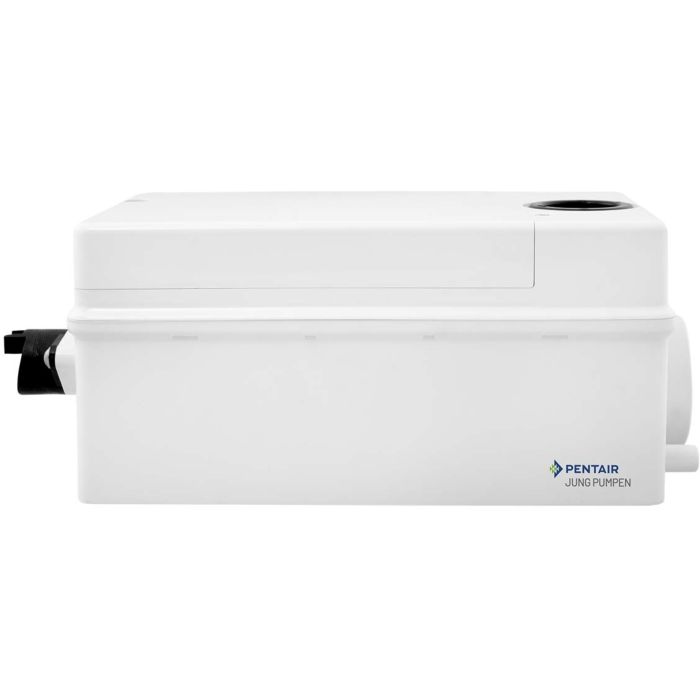

Jung Pumpen Hebefix wastewater lifting station JP48727 H max. 5 m, Q max. 4.3 m³/h
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 3500
Part Number: JP48727
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details
Jung Pumpen Hebefix wastewater lifting station JP48727
Notice
Please note that gas and electric appliances require increased mains voltage for proper operation. These appliances are not equipped with a two-pin mains plug. The installation of non-pluggable appliances must be carried out by the respective network operator or a certified specialist company, which can also assist you in obtaining any necessary approval from the relevant network operator for the installation of the appliance.
Downloads (6)
Product Safety
Manufacturer
JUNG PUMPEN GmbH
E-Mail
info@jung-pumpen.de
Address
Industriestraße 4-6
33803 Steinhagen
Germany
