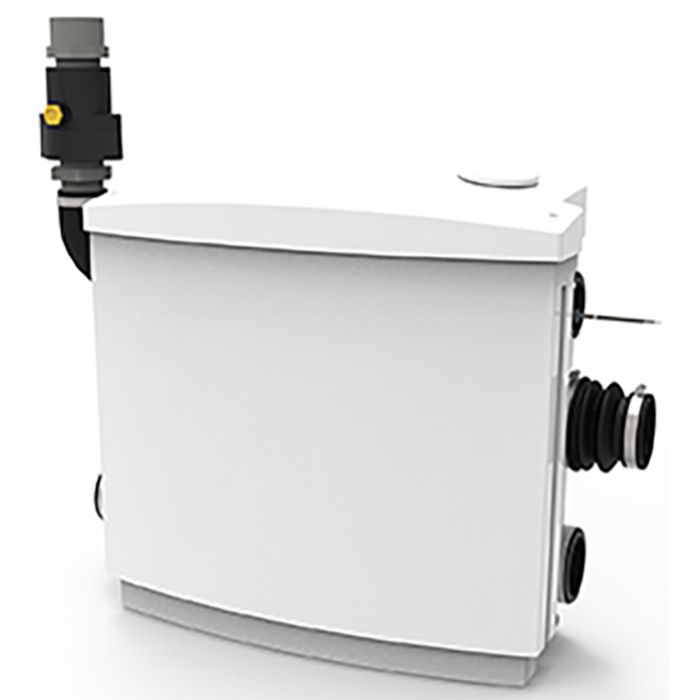

Jung Pumpen Hebefix Pro lifting system JP50050
- Plug-and-play lifting station for domestic wastewater free of fecal matter, such as from sinks, bathtubs, showers, washing machines.
- As well as for aggressive media such as condensate from condensing boilers, brine from water softening systems and aqueous solutions
- Solutions up to 15% salt content.
- The Hebefix Pro is installed directly in the room containing the drainage fixtures.
- Alternatively, the Hebefix Pro can be installed in standard pre-wall systems with an internal width of at least 180 mm.
- Note: For concealed cistern systems, please provide a maintenance opening of 500 x 500 mm (H x W). Alternatively, it can be located directly in the room containing the drainage fixtures. If the water level becomes too high, the alarm will sound a loud buzzer. The alarm signal can be transmitted via a potential-free contact.
- container
- Dimensions: 411x425x183 mm (HxWxD)
- Weight: 7 kg
- 1 pressure outlet
- 4 inlet nozzles d=50 mm
- 1 Inlet at top d=40 mm
- Scope of delivery:
- 1 Hebefix PRO
- 1 Check valve 1¼"
- 1 hose bend
- 2 nipples
- 6 hose clamps
- 2 cuffs
- 3 plug-in seals
- 2 dowels
- 2 hook screws
- 1 sealing plug
- 1 activated carbon filter
- Submersible motor pump
- Vertical, single-stage, dry-running safe, mounted in the tank, automatically restarting, temperature-dependent motor protection, dry-running safe medium-side SIC mechanical seal and motor-side oil chamber and radial shaft seal, motor housing and rotor shaft made of stainless steel, pump housing and impeller made of plastic.
- Protection class: IP 68
- Free passage: 10 mm
- Flow rate: Q max 6.5 m³/h
- Delivery head: H max 7 m
- Motor power: P2 = 220 W
- 2745 1/minVoltage: 1/N/PE 230V, 50 Hz
- Cable: 4 m H07 RN8-F-4G0.75
