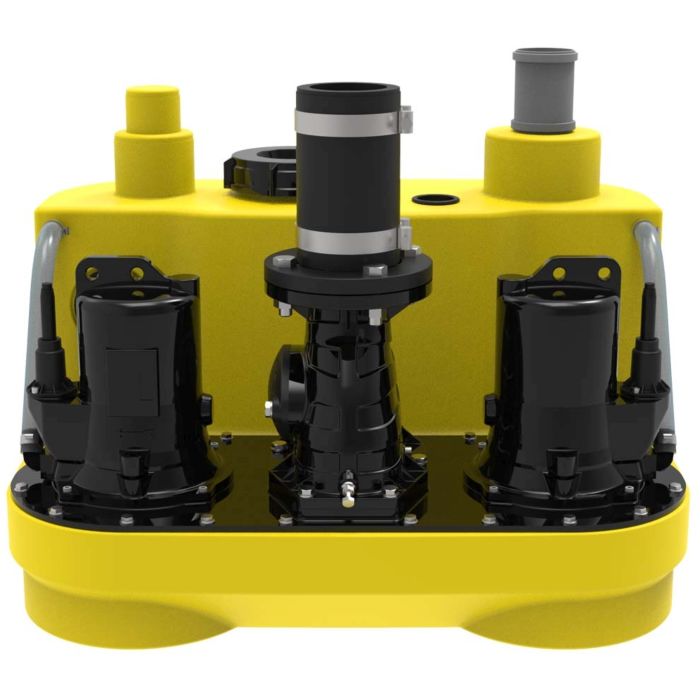

Jung Pumpen lifting system Compli 1010/4 S1 HL JP50838
400 V
Pump: vertical single-stage
Clear passage: 70 mm
Pressure line: DN 100
Engine housing: Cast iron
Bearings: Ball bearings, grease-lubricated
Container volume: 117 l
Weight: 122 kg
Voltage: 3/N/PE~400 V
Motor power P1: 1.25 kW
Motor power P2: 1.03 kW
Current: 2.3 A
Power cable 10m H07RN-F
Wires: 6G1.5
Protection class IP68
Insulation class: F
Winding thermostat: yes
Plug: CEE-16A
Notice
Please note that gas and electric appliances require increased mains voltage for proper operation. These appliances are not equipped with a two-pin mains plug. The installation of non-pluggable appliances must be carried out by the respective network operator or a certified specialist company, which can also assist you in obtaining any necessary approval from the relevant network operator for the installation of the appliance.
