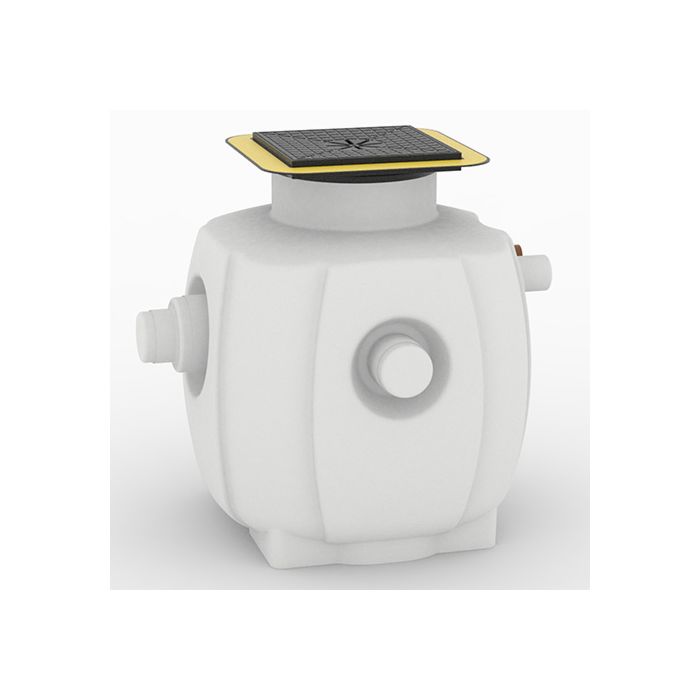

made of PE for mounting two U3K type wastewater pumps
U5K
U6K
US62
US73
US102
US 103
US73 Ex or US 103 Ex
also usable as a standalone station
Then choose a pump with an integrated float switch.
1 inlet nozzle DN 150/100
1 ventilation nozzle DN 70 and 1 threaded connection 1 1/4" for the pressure line
Two check valves with elastic connectors are included.
Sealing sleeve for connection to a building-provided thin-bed waterproofing system
The cover frame is level-compensating up to 100 mm.
Plastic cover with floor drain and odor trap, optionally closed or open.
Transitions between container/cover frame and cover frame/cover plate equipped with profile seals
825 x 840 x 840 mm
Installation depth: 825-925 mm
Inlet nozzle height: 440 mm
Pressure outlet height: 565 mm
Height of ventilation duct DN 70: 565 mm
Weight: 30 kg
Volume: 240 liters
