- concrete-resistant
- made of PE for mounting two U3K type wastewater pumps
- U5K
- U6K
- US62
- US73
- US102
- US 103
- US73 Ex or US 103 Ex
- also usable as a standalone station
- Then choose a pump with an integrated float switch.
- 1 inlet nozzle DN 150/100
- 1 ventilation nozzle DN 70 and 1 threaded connection 1 1/4" for the pressure line
- Two check valves with elastic connectors are included.
- Sealing sleeve for connection to a building-provided thin-bed waterproofing system
- The cover frame is level-compensating up to 100 mm.
- Plastic cover with floor drain and odor trap, optionally closed or open.
- Transitions between container/cover frame and cover frame/cover plate equipped with profile seals
- 825 x 840 x 840 mm
- Installation depth: 825-925 mm
- Inlet nozzle height: 440 mm
- Pressure outlet height: 565 mm
- Height of ventilation duct DN 70: 565 mm
- Weight: 30 kg
- Volume: 240 liters
Jung Pumpen Baufix underground tank JP48186 200-32, as a single or double system
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 3500
Part Number: JP48186
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details

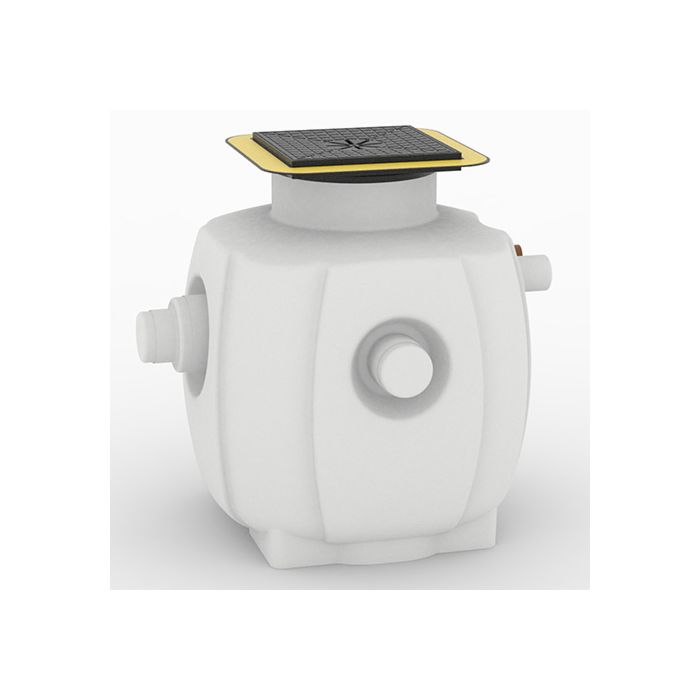

Jung Pumpen Baufix underground tank JP48186
