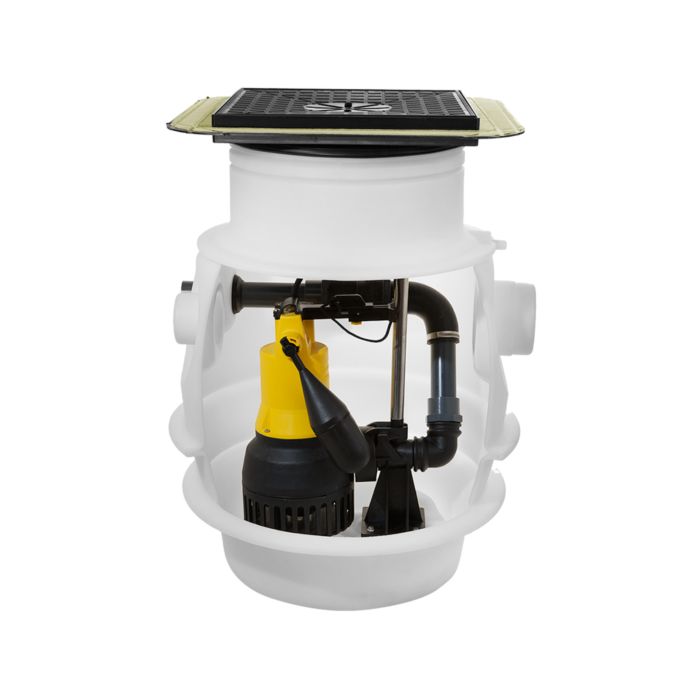

Without the need for formwork, the pressure-resistant plastic container is inserted into the concrete slab and serves as a collection tank for the main drain line. PE container (70 l) with 2 inlet connections (DN 100)
Connection fitting for ventilation/cable duct (DN 70) and connection fitting for pressure line DN 32 (PV pipe Ø 40 mm)
level-compensating cover frame made of plastic
odor-proof plastic cover (screw-on) and odor-proof floor drain
698 x 555 x 698 mm
Height of inlet nozzle (DN 100) 390 mm
Height of pressure port (DN 32) 390 mm
Height of ventilation duct (DN 70) 390 mm
Leveling of the cover frame up to 100 mm as standard
Groundwater sealing available as an accessory
