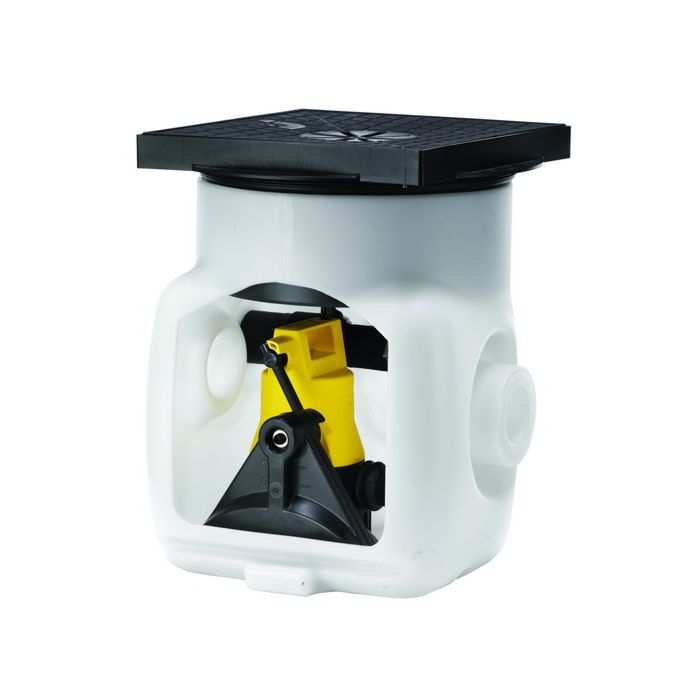

- Concrete-resistant PE collection tank for housing a U3KS or U3KS special type wastewater pump
- Special float and quick-release fastener in stainless steel are included.
- 2 inlet nozzles DN 50/100
- One DN 70 ventilation port and one DN 32 port for the pressure line. The pressure line in the shaft with elastic connection and check valve is already pre-assembled.
- A sealing sleeve for connection to a building-provided thin-bed waterproofing system is included.
- Level-compensating cover frame up to 100 mm
- The plastic cover has a bottom drain with odor trap.
- optionally closed or open
- Transitions between container/cover frame and cover frame/cover plate equipped with profile seals
- 715 x 380 x 417 mm
- Installation depth: 450-715 mm
- Inlet nozzle height: 180 mm
- Height of pressure port DN 32: 225 mm
- Height of ventilation duct DN 70: 210 mm
- Weight: 8 kg
- Volume: 40-55 l
Jung Pumpen Baufix underground tank JP09335 Tank without pump
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 1100
Part Number: JP09335
