- Control system for level-dependent switching on and time-dependent switching off of a direct starting device
- explosion-proof three-phase submersible motor pump
- preferably a MultiCut pump
- Standard features include two independent dynamic pressure level sensors for 'On/Off' and automatic emergency activation with alarm message.
- ATEX-compliant monitoring of motor temperature and running time
- Dry-running protection with immersion switch and safety barrier
- Adjustable pump overrun time (1-60s)
- with coupled switch-on delay
- (0-10s) after power failure
- Indicator lights for pump operation
- Motor overcurrent
- Engine overtemperature
- Engine running time exceeded
- Floods
- Water shortage
- incorrect rotation field
- Alarm system (mains-dependent): potential-free and resettable normally closed contact
- e.g. for connecting a 230 V flashing or warning light
- Optionally, pulse-controlled, potential-free normally open contact for remote fault signaling, electronic buzzer
- Optionally clocked and acknowledgeable battery charging circuit for mains-independent operation of the alarm system using an optional battery.

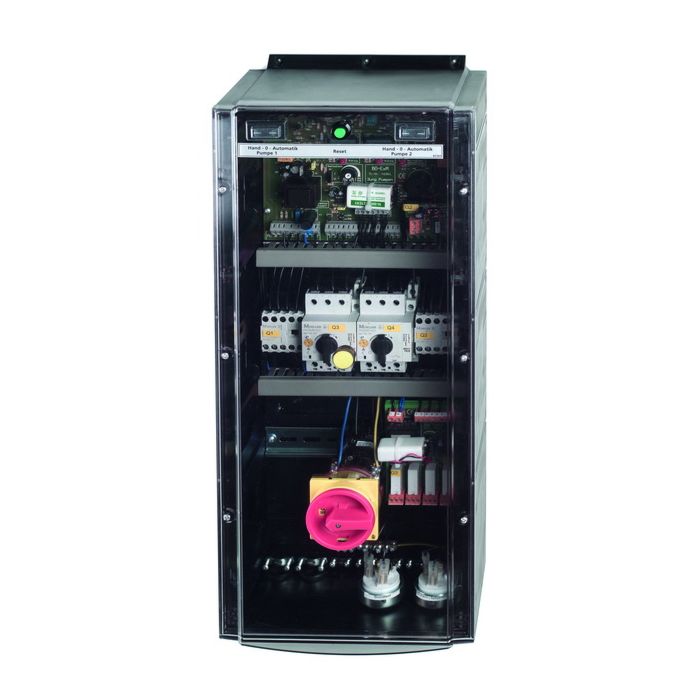

Jung Pumpen Basiclogo control unit JP44447 BD 46 EXM,TLS, BTR, with dynamic pressure level sensor
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 250
Part Number: JP44447
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details
Jung Pumpen Basiclogo control unit JP44447
Notice
Please note that gas and electric appliances require increased mains voltage for proper operation. These appliances are not equipped with a two-pin mains plug. The installation of non-pluggable appliances must be carried out by the respective network operator or a certified specialist company, which can also assist you in obtaining any necessary approval from the relevant network operator for the installation of the appliance.
Product Safety
Manufacturer
JUNG PUMPEN GmbH
E-Mail
info@jung-pumpen.de
Address
Industriestraße 4-6
33803 Steinhagen
Germany
