Installation depth 8 cm (with insulation tray 9 cm)
Optimal sound compensation through insulation tray (< 30 dB)
For showers up to 20 l/min
Pressure line 1"
Drain can be tiled or made of stainless steel

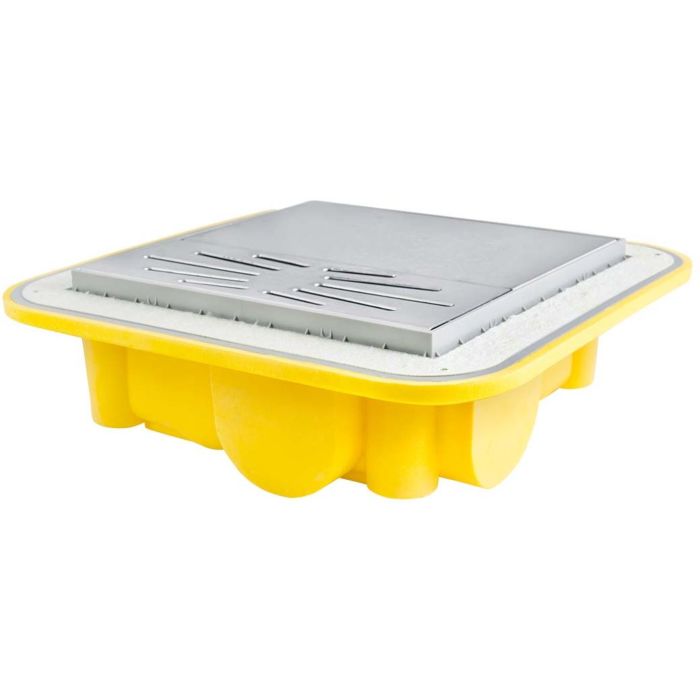

Both the Plancofix plus and the Plancofix are floor drain pumps that make it possible to install floor-level showers even where this was previously impossible due to a lack of free slope. This makes the dream of a barrier-free bathroom a reality during a bathroom renovation, even in older buildings.
Embedded in the screed, the Plancofix (plus) forms the floor drain in tileable showers. The incoming water is pumped via a 1" pressure pipe to the nearest downpipe.
The Plancofix (plus) is not a lifting unit according to DIN EN 12050-2, but was specifically designed for draining showers (max. 20 l/min). The inlet from the shower can be either directly from above via the floor drain or from the side via a connection piece (1"). The total installation depth is 8 cm, or 9 cm when using the insulation tray.
