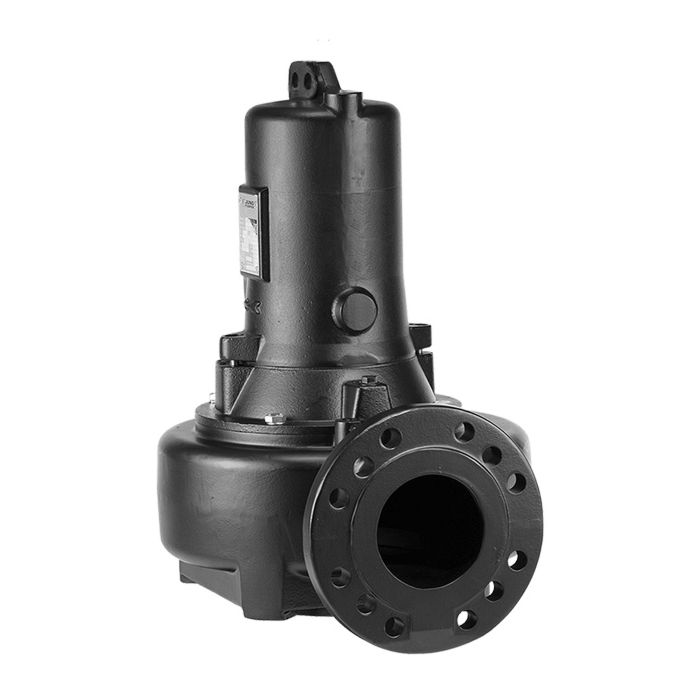

2x vertical single-stage submersible motor pump with horizontal pressure outlet
connected in series via suction pot
TÜV type-tested according to DIN EN 12050
external
adjustable
hardened stainless steel cutting system and cutting plate with spiral grooves
dry-running safe
Silicon carbide mechanical seal on the medium side and double radial shaft seal on the motor side.
with oil chamber and possibility of seal check
Longitudinally watertight potted cable entry with pluggable cable connection
Cutting system with C-shaped cutting geometry achieves almost 200% more cuts per minute compared to previous versions.
This equates to over 200,000 cuts per minute.
The proper functioning of the winding thermostats must be ensured by appropriate control.
additional overcurrent release
Motor protection switch required
