Jung microprocessor control JP48292 Highlogo 1-25 LCSX 2.4-4 A, for single systems
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 250
Part Number: JP48292
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details

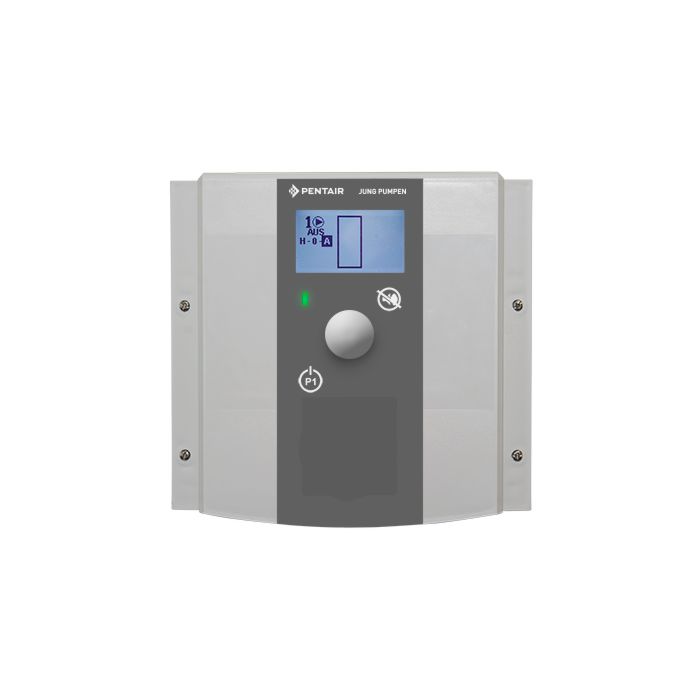

Jung microprocessor control JP48292
- for level-dependent switching of a direct starting
- also explosion-proof three-phase pump
- Two independent level sensors for on/off switching function as standard
- Automatic emergency shutdown with alarm message for increased safety
- ATEX-compliant monitoring of motor temperature and running time selectable
- Operating voltage 3/N/PEx230/400 V
- 50Hz
- Housing with door
- IP44
- 275x250x155mm
- Motor contactor 4
- 0kW/400V
- mechanical overcurrent relay 2
- 4-4
- 0A
- for standard-compliant 3-phase motor current monitoring
- Manual-0-Automatic button
- Reset button for alarm
- 2 pressure switches (max. 0
- 3bars)
- Terminal blocks for mains connection
