Jung compli sewage lifting station JP50076

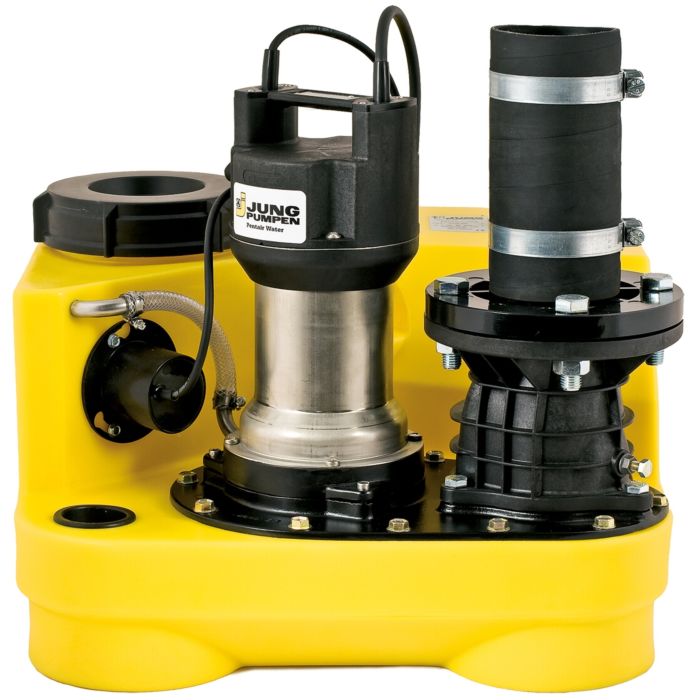

The floodable single unit consists of a plastic (PE) tank in a stepped shape with an optimized bottom to reduce deposits and blockages, a gray cast iron support plate with an integrated ring housing, a mounted motor, a non-return valve, and a pressure outlet.
Container:
Dimensions: 445 x 605 x 540 mm (HxWxD)
Container capacity: 50 l
Nozzle for ventilation duct DN 70 with sleeve, optionally as sleeve in DN 50
4 inlets DN 100/50 on three sides and top.
Designed as a sleeve with clamping flange and insertion limit.
Inlet height on the sides: 180 mm
Additional connection 50 mm vertical as a sleeve for e.g. a hand diaphragm pump.
Additional connection 50 mm horizontal as a sleeve
Connection flange DN 80
Elastic connection with 2 clamps for pressure pipe with outer diameter 90 mm
Vertical submersible motor pump, single-stage for pumping wastewater according to DIN 1986-3,
Ready for operation, mounted on the tank, free-flow impeller with large
free passage, dry-running safe due to permanent grease filling, motor thermostat to protect against overheating, cable entry longitudinally watertight cast
and replaceable via plug connection.
Free passage: 50 mm
Flow rate Q: 33-13 cbm/h
Delivery head H: 1-9 m
Motor protection class: IP 68
Voltage: 1/N/PEx230
Motor power P2: 0.95 kW
Engine speed n: 2725 rpm
Operating mode: S3 according to VDE
Pressure nozzle: DN 80
Weight: 31 kg
Steering:
Automatic and water level-dependent switching on and off
Level detection installed in the tank.
Connector housing, 121x66x55 mm (HxWxD),
Protection class IP 44, 4m cable,
LED indicator "ready for use"
Manual-0-Automatic switch
Mains-dependent alarm buzzer
Potential-free collective fault alarm contact
| Suitable for feces | Yes |
| Material of the container | plastic |
| Material quality of the container | PE-80 |
| Pump housing material | cast iron |
| Material quality of the pump housing | Cast iron GG 25 (GJL-250) |
| Suitable for outdoor use | No |
| Installation behind the toilet bowl | No |
| Container volume | 50 liters |
| Number of pumps | 1 |
| Max. delivery head | 10 m |
| Max. dimensions of fixed parts | 525 mm |
| With cutting unit | No |
| Inlet connection | clamping ring |
| Diameter connection supply side | DN 100 |
| Diameter connection supply side | 110 mm |
| Number of inlet openings | 2 |
| Pressure side connection | flange |
| Diameter connection pressure side | DN80 |
| Diameter connection pressure side | 90 mm |
| With check valve | Yes |
| Pressure level flange | PN2.5 |
| With ventilation | Yes |
| Connection voltage | 1 x 230 V |
| frequency | 50 Hz |
| Motor power consumption (P1) | 1370 W |
| Motor output power (P2) | 980 W |
| Rated current | 6 A |
| Protection class (IP) | IP68 |
| Insulation class according to IEC | B |
| Electrical connection | Connection cable with plug |
| Width | 525 mm |
| depth | 525 mm |
| Height | 498 mm |
| Alarm function | Yes |
| Alarm output | Yes |
