Jung Basiclogo control JP47264 BD 910, for double system

Name: Jung Basiclogo control JP47264 BD 910, for double system
Brand: Jung
SKU: JP47264
Price: 1829.80 EUR
Availability: InStock

€1,829.80

instead of €2,570.21 **

-29% You're saving €740.41

Incl. 19% VAT , plus shipping costs

Available for order delivery time: 10-28 working days

Shipping Cost Points: 250

Part Number: JP47264

Questions about the article?

+49 241-51832611 Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm

info@skybad.de

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Illustration may differ from the actual product. Delivery without accessories and decoration.

Details

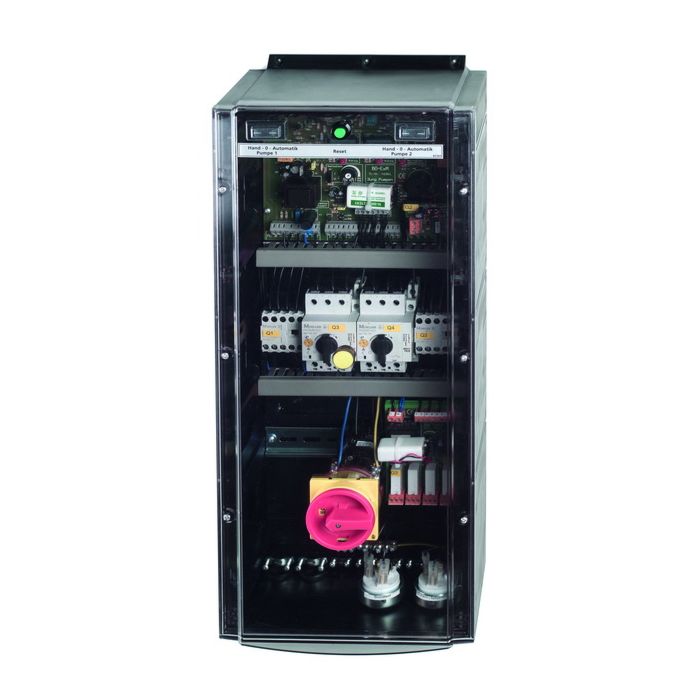

Jung Basiclogo control JP47264

for level-dependent switching on and off of two direct-starting AC submersible pumps
Automatically alternating switching on of pump 1 and pump 2
Optional activation of the idle pump in case of peak load or fault as well as staggered start-up after power failure
Operating voltage 1/N/PEx230 V
50Hz
Housing with transparent door
IP44
430x250x155mm
2x Motor contactors 4
0kW/400V
2 motor fuses 10 A Neozed
3x control fuses 2 A for 230V control circuits
1 AC output 2 A
230V
2 manual-0-automatic selector switches
Indicator lights for operation of pump 1 and pump 2
Flood alarm system (network dependent)
Potential-free normally open contact for remote fault reporting
or for connecting a flashing or warning light (max. 5 A/250 V AC)
electronic buzzer
Battery charging circuit for mains-independent operation of the alarm system using an optional battery

Notice

Please note that gas and electric appliances require increased mains voltage for proper operation. These appliances are not equipped with a two-pin mains plug. The installation of non-pluggable appliances must be carried out by the respective network operator or a certified specialist company, which can also assist you in obtaining any necessary approval from the relevant network operator for the installation of the appliance.
