- Filter housing made of plastic PN 16
- Built-in rotary flange with patented bayonet connection made of brass with screw connection (threaded connection according to DIN EN 10226 2000 ) and two Screws connection technology
- Horizontal or vertical installation by turning the QUICKSET-E built-in rotary flange
- Filter mesh from Stainless Steel
- patented backwash unit
- Backwashing with simultaneous Cleaning and Filtration of the sight glass (with sliding UV filter bell cover)
- with integrated free outlet and patented Bathroom ceramics flush valve
- with hose connection
- with time-controlled automatic backwashing (the screen surface is cleaned three times per backwashing)
- preselectable setting of the backwash interval (1 day
- 1 week
- 1 month
- 2 months)
- with potential-free contact for remote transmission of the fault message
- patented safety module
- Cover hood with integrated backwash month display
- Plug-in power supply 230 V/50 Hz
- for drinking water up to 30 °C
- Working pressure 2000
- 5-16 bars

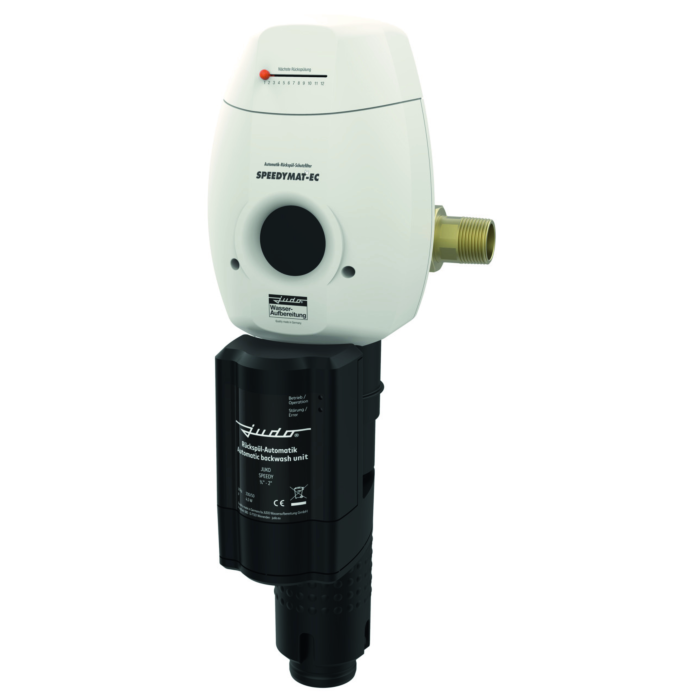

Judo Speedymat-ec-at backwash protection filter 8072507 JSY-EC-AT, 2000 2000 /4", 100 µm mesh size, automatic backwash
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 400
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details
Judo Speedymat-ec-at backwash protection filter 8072507
Notice
Please note that gas and electric appliances require increased mains voltage for proper operation. These appliances are not equipped with a two-pin mains plug. The installation of non-pluggable appliances must be carried out by the respective network operator or a certified specialist company, which can also assist you in obtaining any necessary approval from the relevant network operator for the installation of the appliance.
Downloads (4)
Product Safety
Manufacturer
JUDO Wasseraufbereitung GmbH
E-Mail
info@judo.eu
Address
Hohreuschstraße 39-41
71364 Winnenden
Germany
