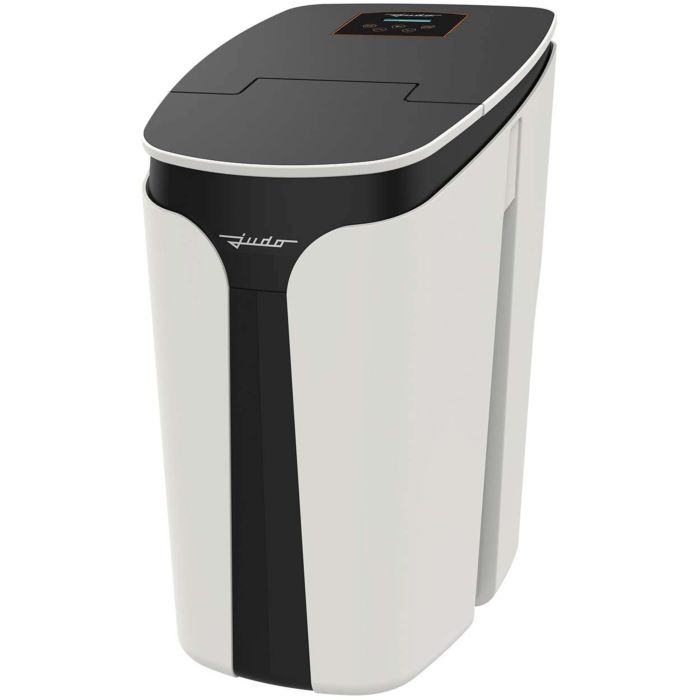

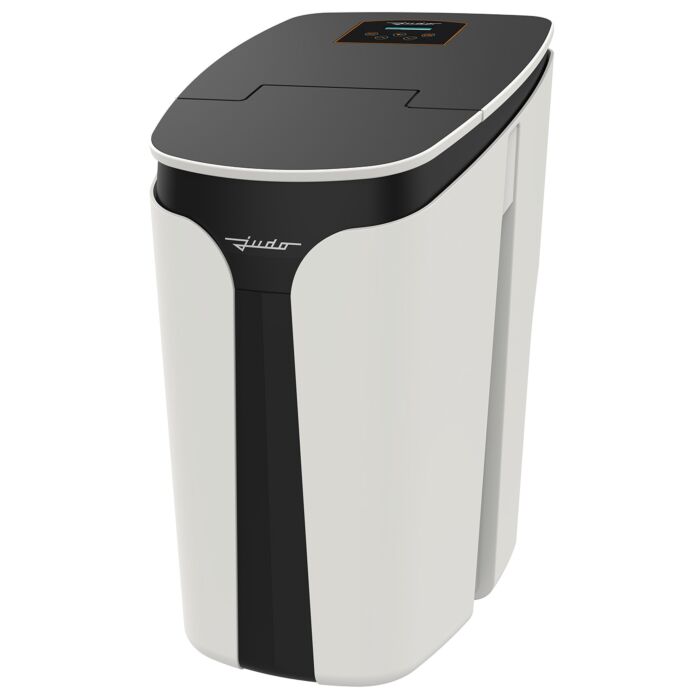

Judo SOFTwell water softener 8203528
- for softening drinking water according to DIN EN 14743 and DIN 19636-100
- parallel operation with two exchanger tanks
- allows water to be withdrawn at any time while ensuring hygienic flow through all parts of the system
- floor-standing or wall-mounted water softening system in parallel technology
- Consisting of: Plastic housing for accommodating glass fibre reinforced containers (PN 10) filled with food-grade ion exchange resin for optimal water distribution and minimisation of pressure loss and regenerant consumption
- integrated salt dissolving and storage tank with continuous brine supply and level monitoring
- Container cover with soft-close function for the regenerant filling opening
- Wear-free ceramic disc technology for lifelong programmed operating sequences
- Forced regeneration after 72 hours at the latest and system hygienicization through built-in disinfection device with platinum-plated titanium electrodes
- Control electronics with touch-sensitive keyboard and multi-line LCD display for operation
- regeneration
- Salt deficiency
- colored status indicator light
- and manual regeneration triggering
- potential-free fault message
- including QUICKSET-U quick assembly kit with bypass valve and fittings
- for connection to the pipe and hose connections for connection to the softener
- including flexible DVGW-tested connection hoses and siphon for standard connection to the sewage system according to DIN EN 1717 and DIN 1988-100 as well as a hardness measuring set
- Plug-in power supply 230 V/50 Hz.
- Technical data: Pipe connection: 1" external thread with screw connection
- Nominal flow rate according to DIN EN 14743 and pressure loss 1 bar: 1.8 m3/h
- Nominal flow rate when reducing the hardness from 20 degrees dH to 8 degrees dH: 3 m3/h Short-term flow rate max.: 3.5 m3/h Number of residential units min.: 4 residential units
- Min. operating pressure: 2 bar
- Minimum operating pressure: 7 bar
- Flow pressure min.: 2 bar
- Water temperature max.: 30 degrees C
- Ambient temperature max.: 30 degrees C
- Power supply: 230 V/50 Hz
- Power consumption min.: 1 W
- Maximum power consumption: 15 W
- Note on power consumption: The power consumption refers to operation (min.) and temporary regeneration (max.). Salt consumption per m3 and softening from 20 degrees dH to 8 degrees dH: 0.4 kg
- Salt reservoir capacity: 25 liters
