- Filter housing made of grey cast iron PN 10
- inside and outside corrosion-resistant plastic coated
- Flange connection according to DIN EN 1092-2
- Stainless steel filter mesh
- Backwashing according to the point rotation system with simultaneous cleaning of the sight glass
- with automatic backwash to trigger the operating and backwash positions
- Plug-in power supply 230 V/50 Hz
- Patented safety module for closing the flush valve in the event of a power failure
- Control via keyboard and LCD display
- Time-controlled automatic backwash (adjustable from 4 hours to 50 days)
- with differential pressure switch (adjustable differential pressure up to 0
- 6 bar) to trigger the backwash and manual release via button
- Potential-free input for remote triggering of a backwash and potential-free outputs for transmission of messages (I/O cable set required)
- for drinking water up to 30 °C
- Operating pressure 1
- 5-10bars

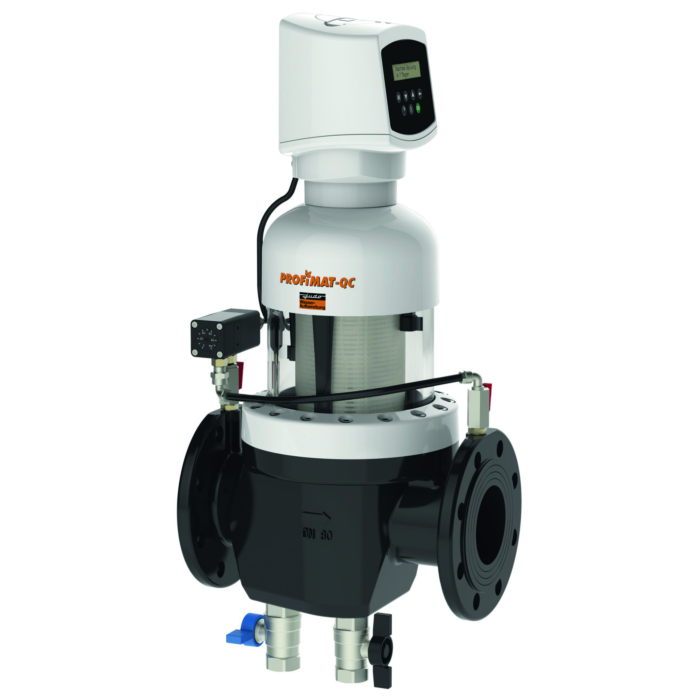

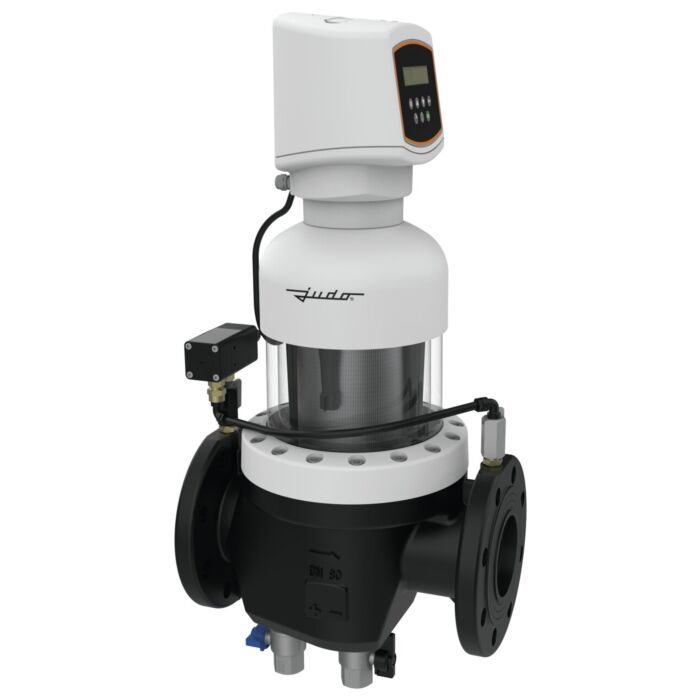

Judo Profimat backwash protection filter 8025069 JPF-QC-ATP, 320 µm special mesh size, DN 80, automatic backwash
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 400
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details
Judo Profimat backwash protection filter 8025069
Notice
Please note that gas and electric appliances require increased mains voltage for proper operation. These appliances are not equipped with a two-pin mains plug. The installation of non-pluggable appliances must be carried out by the respective network operator or a certified specialist company, which can also assist you in obtaining any necessary approval from the relevant network operator for the installation of the appliance.
Downloads (4)
Product Safety
Manufacturer
JUDO Wasseraufbereitung GmbH
E-Mail
info@judo.eu
Address
Hohreuschstraße 39-41
71364 Winnenden
Germany
** Average Wholesale Price
