- protects against the consequences of tap water damage and detects insidious water losses
- Horizontal or vertical installation possible by turning the QUICKSET-E built-in rotary flange
- for drinking water up to 30 °C
- Operating pressure max. 16 bar
- Combination for leakage protection and drinking water filtration with Pressure Reducing Valves
- Cladding made of EPP (recyclable)
- consisting of: leakage protection system (according to DIN 3553) with housing made of plastic (PN 16)
- Turbine flow meter with Hall sensor
- Kugelhahn with servomotor and manual emergency actuation for shutting off the water line if individually pre-selectable limit values are exceeded (max. water volume
- max. water flow and max. withdrawal time) and micro-leakage detection
- automatic activation of the absence (holiday mode) after 72 hours without water withdrawal
- stand-by function
- Adaptation to individual consumption habits via programmable opening and closing times
- Learning mode for automatically determining the optimum limit values
- Control electronics with film protection function
- Plug-in power supply 230 V/50 Hz
- with potential-free error message
- integrated connectivity module for connecting the ZEWA i-SAFE FILT to a home network and the Internet via a LAN connection
- iOS/Android and browser app available
- for global access to extensive information
- automated notifications and functions such as setting the leakage protection system and actuating the i-safe+ shut-off valve
- Connection option for several floor sensors (max. 10 pieces)
- Hauswasserstation with filter housing made of high quality plastic (PN 16)
- Filter mesh from Stainless Steel
- cleaning unit
- Handwheel for backwashing the sieve insert with simultaneous Cleaning and Filtration of the sight glass
- with integrated free outlet and Bathroom ceramics flush valve with hose connection
- Manoscopes
- Pressure Reducing Valves and setting hand wheel (factory holding pressure settings of 4 bar)
- Adjustment range of reprint of 2000
- 5-6 bar (depending on operating conditions it may be necessary
- to increase the emphasis)
- sound insulation tested group 2000 without conditions
- including built-in rotary flange with bayonet connection made of brass with Screw connections (threaded connection according to DIN EN 10226 2000 )

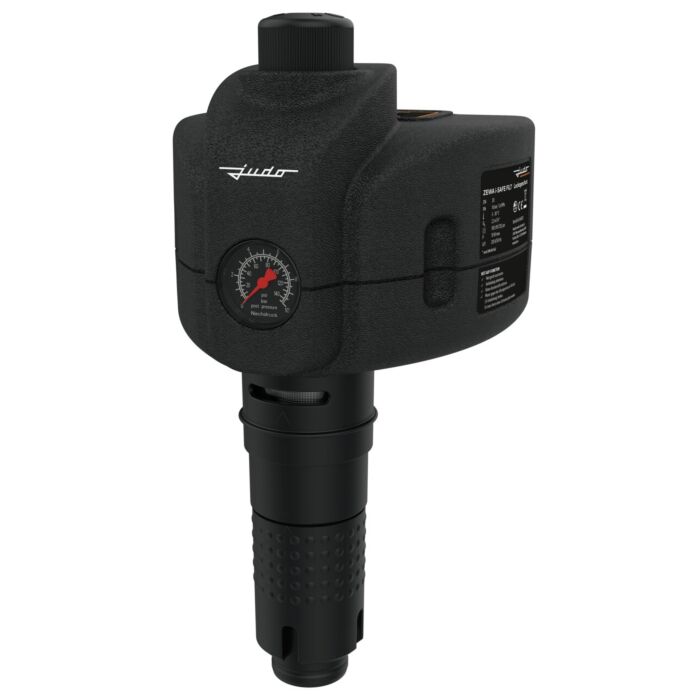

Judo micro-leak protection 8140025 2000 2000 /4", with integrated Hauswasserstation
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 100
Part Number: 8140025
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details
Judo micro-leak protection 8140025
