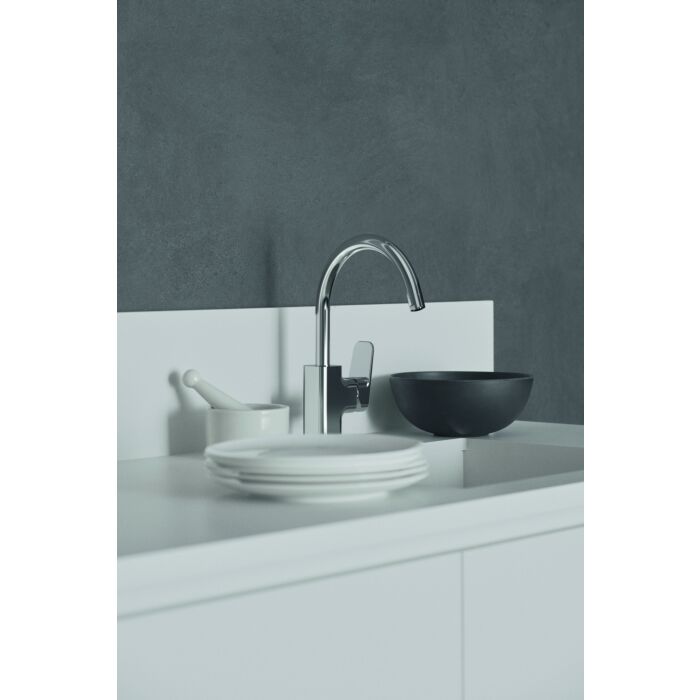

Ideal Standard Ceraplan kitchen faucet BD334AA
Version: high spout
plate/faucet hole
Ben required tap holes: 2000
External dimensions (WxDxH): 112x234x312 mm
Projection: 200 mm
Outlet height: 209 mm
Fastening type: Easy-Fix quick mounting system
Faucet handle: handle made of metal
Handle with temperature marking: red and blue
CLICK cartridge
Company Flow cartridge
Cartridge life test 500,000 cycles
Cartridge swivel range: 100 degrees
Cartouche translation from Stainless Steel
Hot water temperature limiter: integrated
cartridge ceramic
Fat reservoir (food grade)
Noise behavior DIN 4109: Group 2000
Service life: DIN EN 817, DIN EN 200
Backflow protection according to EN 1717: Other
Aerator with anti-limescale function (internal)
Temperature resistance continuous load: 80 degrees
Temperature resistance peak load: 95 degrees
Water saving position (ECO)
Temperature control: manual operation
Outlet: rotatable ( Pipe )
Material grip mount: Stainless Steel
Swivel range from the spout: 360 degrees
35 mm required tap hole diameter
Can be used for max. worktop thickness: 40 mm
Color / finish: chrome (shiny)
Finish: chrome plated
