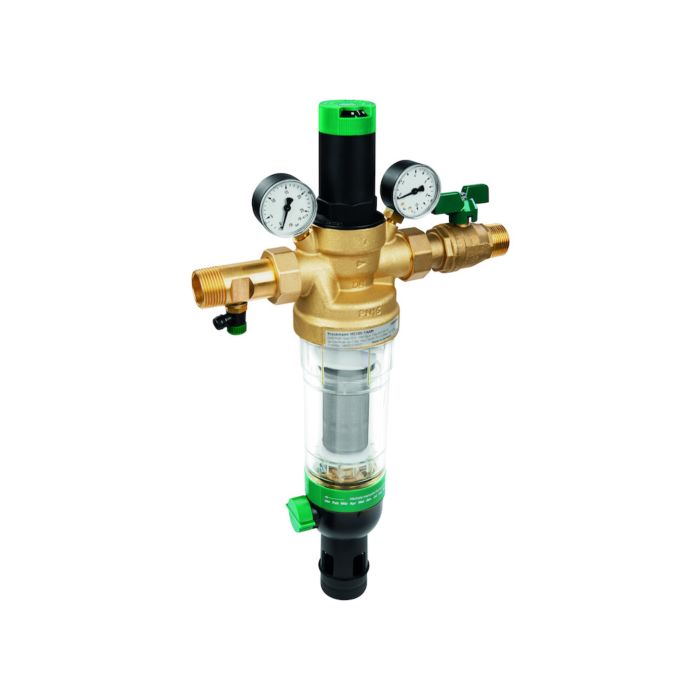

Honeywell domestic water station HS10S-1AB
- Integrated backflow preventer with test valve
- backwashable fine filter
- Pressure reducer and shut-off valve in one device
- uninterrupted supply of filtered water
- The fine filter prevents foreign particles from being flushed in and thus reduces the likelihood of corrosion
- The backflow preventer protects the drinking water network from back pressure/backflow and sucking back of harmful liquids
- The pressure reducer prevents pressure damage and reduces water consumption
- Double Spin technology for nominal widths 1/2" to 1 1/4"
- Cartridge with external rotor (allowing simultaneous cleaning of the lower and upper filter areas)
- visual functional check possible
- Even during backwashing, supply with filtered water
- Backwash system for quick and thorough cleaning of the filter with low water consumption
- Automatic backwash with bayonet connection can be retrofitted
- Filter cup made of shockproof plastic allows filter contamination to be controlled
- Pre-pressure compensation
- Filter insert and complete filter cup replaceable
- Valve insert made of plastic (completely replaceable)
- ACS certified
- all materials according to KTW
- Approved by TÜV LGA as low noise - Group 1 without restrictions
- Certifications DVGW (certification for all filters with 100 µ filter unit)
- SVGW (certification for all filters with 100 µ filter unit)
- Medium drinking water
- Min. inlet pressure 1.5 bar
- Valve body made of dezincification-resistant brass
- Plastic spring hood
- Pipe connection external thread
- Pressure range 1.5-6 bar
- Adjustment scale yes
- unloaded single-seat valve yes
- Horizontal installation position
